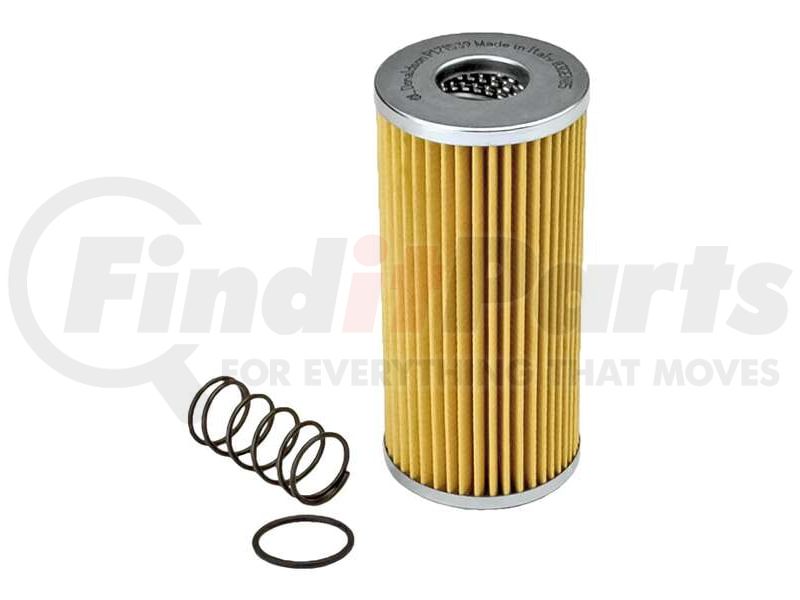

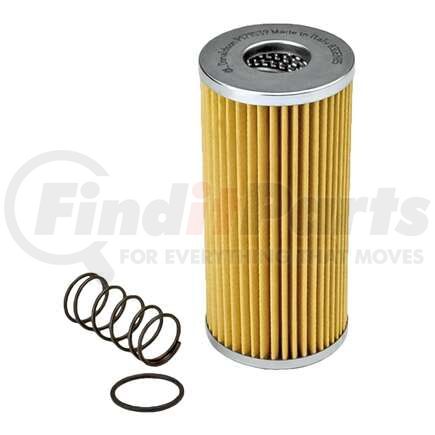

Name: Donaldson P171539 Hydraulic Cartridge - 8.23 in. Overall length, Cellulose Media Type
SKU: p171539
Price: 60.99 USD
Availability: InStock

DONALDSON part description

Product Description

HYDRAULIC FILTER, CARTRIDGE

Application Summary

F.B.O. CR180

Product Attributes

Length	7.95 in
Bypass Valve	Yes
Bypass Valve Setting LR	1.5 bar (22 psi)
Collapse Burst	10 bar (145 psi)
Efficiency Beta 1000	36 micron
Efficiency Beta 2	10 micron
Efficiency Beta 200	32 micron
Efficiency Test Std	ISO 16889
Gasket Id	1.56 in
Gasket Od	1.83 in
Inner Diameter	1.61 in
Maximum Operating Temperature	120 °C (248 °F)
Media Type	Cellulose
Outer Diameter	3.74 in
Overall Length	8.23 in
Primary Application	F.B.O. CR180
Series	FIK
Style	Cartridge

For more than 100 years, Donaldson® has provided effective solutions to complex filtration challenges in various industries. Fleet managers worldwide have relied on Donaldson’s wide range of filtration products to ensure their trucks operate at peak efficiency and reduce expenses and maintenance downtime in the long run. These products include air intake filters and cleaners, cabin air filters, coolant filters, fuel filters and water separators, transmission filters, exhaust filtration products, and so much more. Each Donaldson filtration product is engineered for durability and performance that matches that of the original. Whether they are long-haul trucks, school buses, dump trucks, or other commercial vehicles, Donaldson filtration products will help keep them running smoothly.

DONALDSON P171539 Cross Reference

We have 12 alternatives for the P171539 by DONALDSON:
