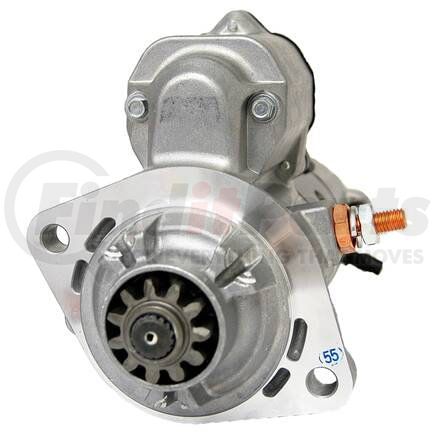

Denso 428000-5120 - New Starter-MD, HD-On Road
$25099
MSRP: $551.80
Save: $300.81
In stock
limited availability at this price!
. Learn more
DENSO part description
| Part Category | Starter |
| OEMs | Denso, Ottawa Truck |
| Voltage | 12 |
| Condition | New |
| Power | 3kW / 4.02HP |
| Rotation | CW |
| Starter Type | PLGR |
| Number of Teeth | 11 |
| Gear OD | 1.567in / 39.8mm |
| Mtg Ear 1 Hole | 11.2mm Unthreaded |
| Mtg Ear 2 Hole | 11.2mm Unthreaded |
| Notes | Battery Stud M10-1.5 Threaded Motor Stud M10-1.5 with Connector Attached to CE Housing Screw Switch Terminal |
| Family | Denso PA90S |
| Application | 2007 Bluebird, Capacity & Ottawa Applications with Cummins ISB Engines |
Denso PA90S Starter
Built using advanced manufacturing technologies, the Denso PA90S starter is a high-quality starter that you can count on. It is lightweight and compact in size, resulting in improved fuel consumption and quick and easy installation in the vehicle.
Features & Benefits
- Uses a compact high-speed motor and a planetary gear as its deceleration mechanism
- Consists of oil-less bearing, dustproof and waterproof housing, and long-lasting brush
- Designed with a fusible steel plate for safety
- Generates a large torque for a small motor, just like the reduction type, but lighter and smaller in size
- Manufactured using Denso’s advanced technology to guarantee full compatibility with cutting-edge truck electronic systems
Product Description
New Starter-MD, HD-On Road
Product Attributes
| Voltage | 12 2H |
| Family | PA90 |
| Power Rating | 3 K7 |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8511400000 |
| Canadian Harmonizing Tariff Code | 8511400000 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8511400000 |
| VMRS Code | 032002001 |
| UNSPSC | 25173902 |
Part Interchanges
DENSO 428000-5120 Cross Reference
We have 39 alternatives for the 428000-5120 by DENSO:
- CUMMINS
- 90032414
- OTTAWA-TRUCK
- ARROWHEAD ND428000-5120
- ARROWHEAD SND0703
- J&N 410-52444
- DELCO 8200834
- DENSO 428000-512
- DIXIE 246-31102
- DIXIE S-80279
- LESTER 19120
- BLUE BIRD 0108907
- OTTAWA TRUCK 90032414
- 190-9060
- DELCO 8200077
- WILSON 91-29-5835
- 428000-512
- WILSON HD ROTATING ELECT 91-29-5835
- 00108907
- 0108907
- 032193
- 108907
- 128036270
- 167592
- 1909060
- 19120
- 19515392
- 24631102
- 246-31102
- 4280005120
- 575469
- 57-5469
- 8200007
- 8200571
- 8300024
- NDE 4280005120
- NDE4280005120
- S80279
- S-80279
For more than 50 years, Denso® has been the leading starter and alternator supplier in the world, keeping the most powerful heavy-duty trucks and trailers operating on and off the highway. In addition to conventional starters, it also offers a wide range of A/C components, sensors, filters, spark plugs, fuel injection components, and other automotive service parts. All Denso® factories are QS9000 and ISO9000 certified with a “zero defects” standard to ensure only the highest level of quality on all Denso products. Founded in 1949, Denso continues to develop and produce premium electrical components and other automotive parts to cater to its customers’ changing heavy-duty truck and trailer needs.
