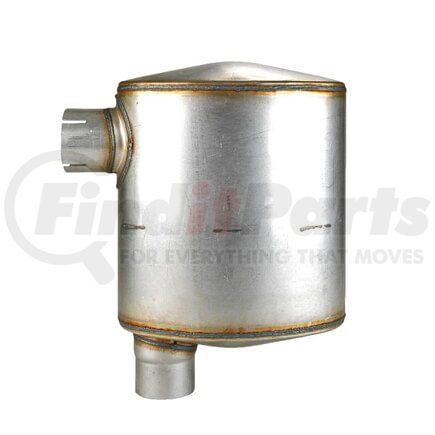

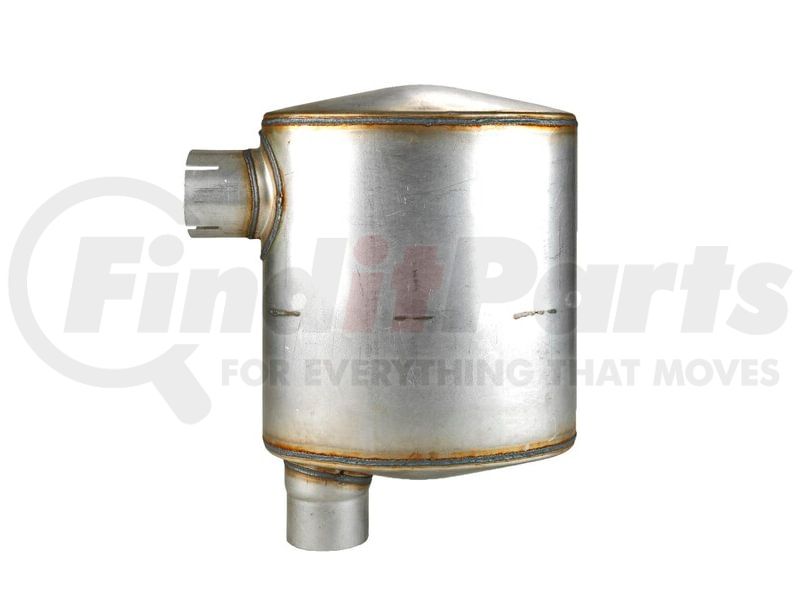

Name: Donaldson M120382 Exhaust Muffler - 21.57 in. Overall length
SKU: m120382
Price: 693.99 USD
Availability: InStock

DONALDSON part description

Product Description

MUFFLER, OVAL STYLE 3

Product Attributes

Body Length	15.00 in
Overall Length	21.57 in
Attenuation Hr	18 dBA
Attenuation Lr	12 dBA
Back Pressure High-range	Hg2.99 inch Hg)
Back Pressure Low-range	Hg0.98 inch Hg)
Back Pressure Mid-range	Hg2.01 inch Hg)
Body Diameter Maximum	15.00 in
Body Diameter Minimum	10.00 in
Inlet Clock Position	12/31/1899 9:00:00 AM
Inlet Diameter	4.02 in
Outlet Clock Position	12/31/1899 9:00:00 AM
Outlet Diameter	3.86 in
Rated Flow Hr	64.1 m³/min (2264 cfm)
Rated Flow Lr	37 m³/min (1307 cfm)
Rated Flow Mr	52.3 m³/min (1847 cfm)
Style	Style 3

For more than 100 years, Donaldson® has provided effective solutions to complex filtration challenges in various industries. Fleet managers worldwide have relied on Donaldson’s wide range of filtration products to ensure their trucks operate at peak efficiency and reduce expenses and maintenance downtime in the long run. These products include air intake filters and cleaners, cabin air filters, coolant filters, fuel filters and water separators, transmission filters, exhaust filtration products, and so much more. Each Donaldson filtration product is engineered for durability and performance that matches that of the original. Whether they are long-haul trucks, school buses, dump trucks, or other commercial vehicles, Donaldson filtration products will help keep them running smoothly.

DONALDSON M120382 Cross Reference

We have 7 alternatives for the M120382 by DONALDSON:
