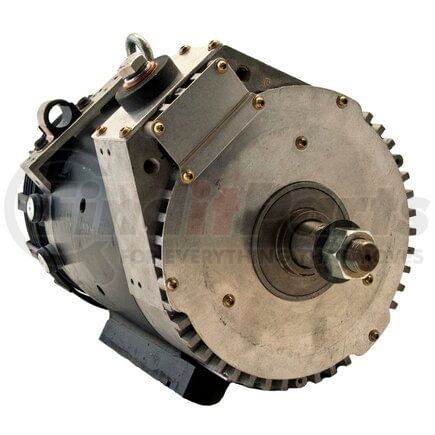

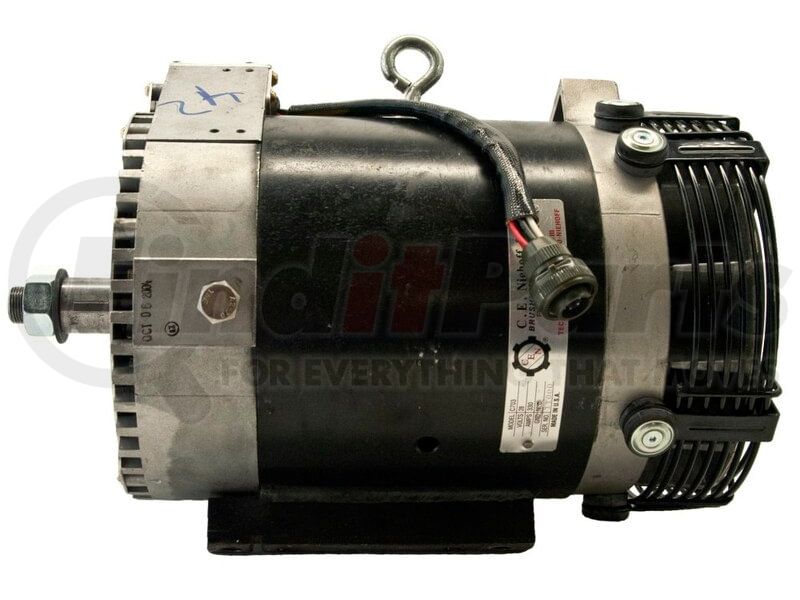

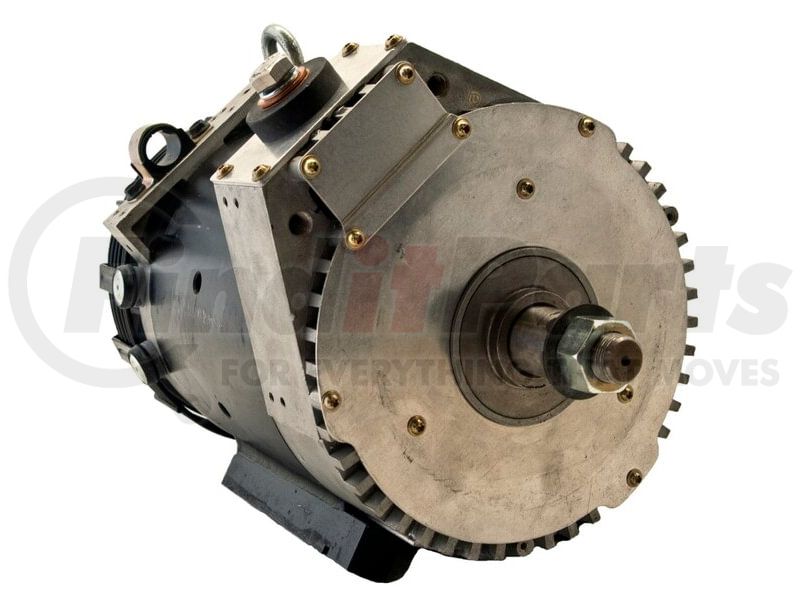

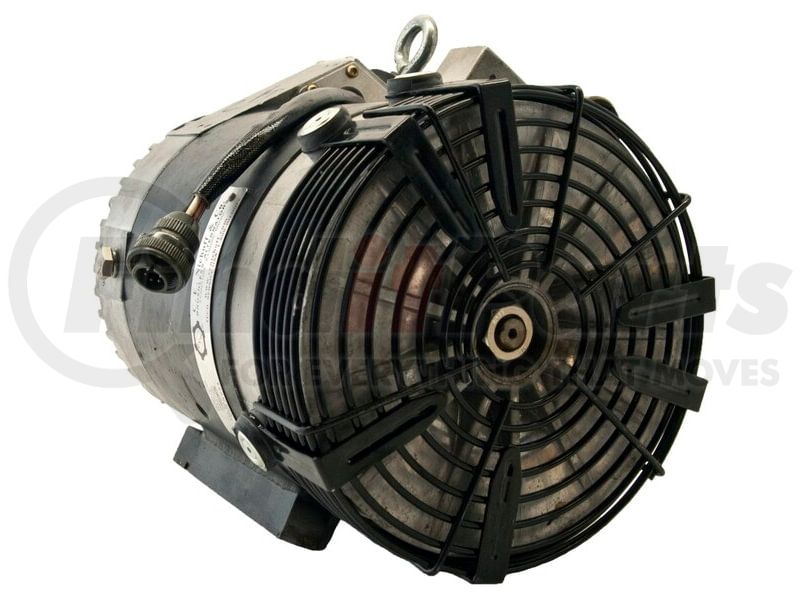

C.E. Niehoff C703 - ALT 28V 350A
- Part Number
- C703
- Manufacturer
- C.E. NIEHOFF
- Description
-
ALT 28V 350A
details
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
C.E. NIEHOFF part description
Product Features
- Air Cooled - Eliminates the need for an oil circulation system. No possibility of oil leaks, no hoses, and no waste heat transferred to the engine
- High Efficiency - Means lower internal alternator operating temperature, resulting in longer alternator life. Less engine power needed to produce electric power means more engine power available for other needs
- Unique Brushless Construction - Elimination of rotating windings, brushes and slip rings yields durability, extends service life, eliminates arcing and reduces electromagnetic interference. (EMI)
- Direct Interchange - Steel cradle mounting design is compatible with cradle mounting bracket
- Long Life Bearings - Feature high temperature grease and are heat stabilized for extended service life in hot engine compartments
- Conformal Coatings - Protects regulator and rectifier against damage from vibration and corrosion
- D+ and P Terminals - Model has an P terminal for optional tachometer use and a D+ terminal for optional charge warning light use.
| Data Sheet: | LIT-C703DS-1016 |
| Troubleshooting Guide: | TG31K |
| OEM Installation Instructions: | II71E |
| Retrofit/Upgrade Installation Instructions: | II72F |
| Preventative Maintenance Checklist: | SB0020B |
| Bus / Transit Bearing Kits: | BK0909 |
| Service Tools: | II0049C |
| Service Manual: | Contact sales for more information. |
| Product Code: | C703(A) |
| Voltage: | 28 |
| Output (Amps): | 350 |
| Mounting Configuration: | Cradle |
| Regulator Options: | A2-214 / A2-341 |
| Regulator Configuration: | External |
| Notes: | C703A features an differently clocked rear housing configuration to that of C703. All performance is identical. |
