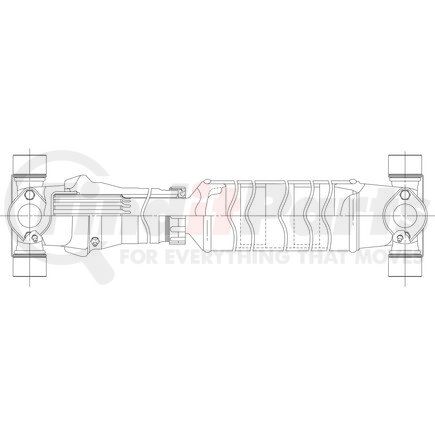

Dana 905358-0512 - DRIVE SHAFT
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
DANA part description
Specifications
| Brand | Spicer |
| Series | 1710 |
| Tube Size (MM) | 101.6 x 3.40 |
| Tube Size (IN) | 4.00 x .134 |
| Slip (MM) | 133.4000 |
| Slip (IN) | 5.2520 |
| Length End To End Collapse(MM) | 543.7250 |
| Length End To End Collapse(IN) | 21.4065 |
| Tube Length (MM) | 136.5250 |
| Tube Length (IN) | 5.3750 |
| Material | Steel |
| Phased - Degrees | N |
| VMRS | 024000000 |
| Package Type | EACH |
| Package Qty | 1 |
| Weight | 27.29 LB |
| Country of Origin | United States |
Features & Benefits
- Dana manufactured Spicer Driveshafts are engineered, tested, and manufactured to meet or exceed OE requirements.
- Dana manufactured Spicer driveshafts are designed to be drop-in replacements, eliminating assembly time.
- Meets or exceeds the performance requirements of the original factory driveshaft
Product Attributes
| Series | 1710 |
| Material | Steel |
| Tube Length (In) | 5.3750 IN |
| Tube Length (Mm) | 136.5250 MM |
| Tube Size (in) | 4.00 x .134 IN |
| Tube Size (mm) | 101.6 x 3.40 mm |
| Shaft Material | Steel |
| Max Slip (IN) | 5.2520 |
| Max Slip (MM) | 133.4000 |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708990000 |
| Harmonized Tariff Code (HTS) | 8708990000 |
| UPC | 00023913308452 |
| VMRS Code | 024000000 |
Part Interchanges
- Daimler Truck North America SP 905358 0512
- Dana Commercial Vehicle Service Parts 905358-0512R
- Volvo SP 9053580512
- Navistar DS9053580512
- Paccar Parts 1202681214
- Paccar Parts 12-02681-214
- Paccar Parts 1202861214
- Paccar Parts 12-02861-214
- Paccar Parts 9053580512
- Paccar Parts 905358-0512
- Paccar Parts 905358-21-2/5
- Paccar Parts 9053582125
Dana Holding Corporation® is an internationally known company specializing in drivetrain and e-Propulsion systems. It conceptualizes, manufactures, and supplies energy-management and power- and conveyance solutions for the present-day and future vehicles and trucks. With its over 115 years of industry experience and innovation, and despite several turbulences the automotive and trucking industry has been through, Dana has managed to take the lead in revolutionary technological inventions. Dana Holding Corporation comprises different world-renowned brands catering to various market segments. These include SPICER Drivetrain Systems, VICTOR REINZ Sealing Products, LONG Thermal Products, BREVINI Motion Systems, GRAZIANO High-Performance Transmissions, FAIRFIELD Custom Gears and Drives, and a lot more.
