BENDIX part description

Product Description

Compressor

Features & Benefits

  • Provides and maintains air under pressure in order to operate devices in the air brake and/or auxiliary air systems
  • Engineered to exacting standards for proper fitment and function
  • A cost-efficient option that works just as good as the OEM unit
  • All Bendix remanufactured air brake compressors are 100% end-of-line tested to ensure quality and reliability

Courtesy of Bendix – All rights reserved

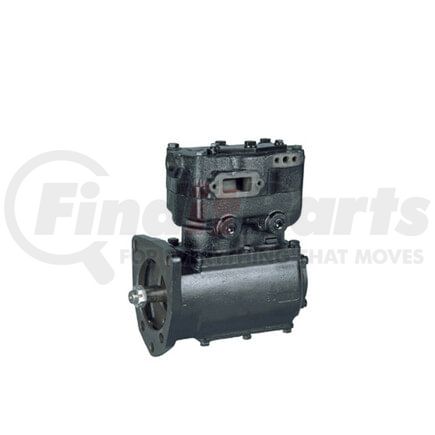

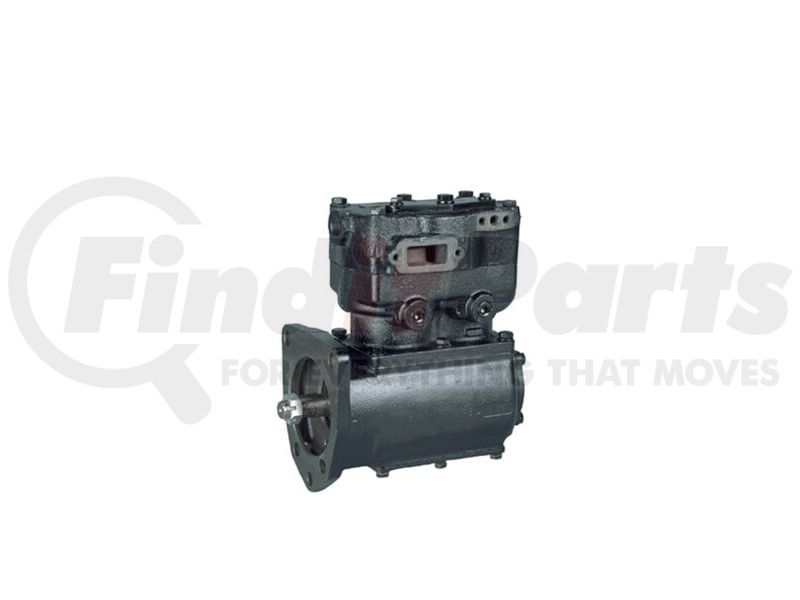

Bendix Midland Compressor

The Bendix Midland compressor goes through rigorous remanufacturing processes and testing to offer better performance and efficiency. It is a part of Bendix's comprehensive lineup of reman compressors proven to help fleets and vehicle owners extend their vehicle's service life and reduce their total cost of vehicle ownership.

Product Attributes

Air Inlet Location Right
Air Outlet Location Top (Flange)
Bore Diameter 69.9 mm
Coolant Inlet Location Right
Cooling Type Water
Cylinder Quantity 2
Mounting Hole Quantity 3
Mounting Type 3-Hole Flange Mount
New Or Remanufactured Remanufactured
Notes Shaft Compressor / Threaded Crankshaft Drive Type, End Cover Oil Feed
Operation Engine Driven
Rated Displacement 13 CFM @ 1250 RPM
Recommended Use For Caterpillar 1673, 1674 Engines
Series Midland

Additional Information

Core Class GA
Core Group G1
Country of Origin (Primary) US
Harmonized Tariff Code (HTS) 8414801615
VMRS Code 013009001
A part of the Knorr-Bremse Group, Bendix® provides the automotive and truck parts industry with cutting-edge energy management solutions, active safety technologies, and air brake charging for tractors, buses, commercial vehicles, trailers, as well as medium- and heavy-duty trucks throughout North America. Headquartered in Elyria, Ohio, Bendix Commercial Vehicle Systems employs over 3,200 people who work hand in hand for the accomplishment of the brand's vision: "to become the leading worldwide supplier of active vehicle safety systems within the commercial vehicle industry." This brand takes pride in being the first to introduce many notable parts and technologies to the North American commercial vehicle market. Among these many firsts are the groundbreaking air brake system technologies such as air dryers, air compressors, and ABS. At Bendix, exceeding industry standards is a strict requirement.

BENDIX EL13080X Cross Reference

We have 1 alternatives for the EL13080X by BENDIX:
