PETERSON LIGHTING part description

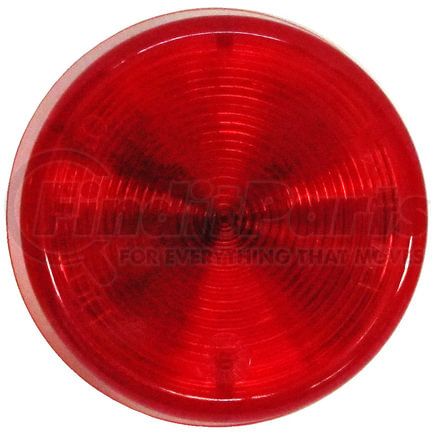

194A/R Series Piranha® LED 2" LED Clearance/Side Marker Light

Features & Benefits

  • 3-diode, 2" round LED clearance/side marker light
  • Integrated receptacle accepts AMP-style connector
  • 9-16 volt operating range
  • 146-18 grommet required for installation

Product Description

LED MARKER/CLEARANCE, P2, ROUND, AMP, 2.0"

Features & Benefits

  • 3 diodes.
  • Made in USA.
  • 2" diameter.
  • Integrated receptacle accepts AMP-style sealed connector.
  • 9-16 volt operating range.
  • Non-flanged units require 146-18 grommet for installation.
  • See mounting accessories section for additional mounting options.

146-18: grommet (poly pack - std qty 24)

Product Attributes

Bulb Technology LED
Bulb/diode Count 3
California Proposition 65 Required Y
Container Type poly bag
Diameter 2 IN
Family PM
Height 2 in
Integral Reflex N
Length 2 in
Lens Color red
Light Color red
Marine Use Y
Maximum Voltage 16 Volts
Minimum Voltage 9 Volts
Mounting Type grommet
Multi-volt N
Pc Rated N
Regulatory Compliance DOT
Shape 2-inch round
Termination AMP
Voltage 9 Volts
Width 0.69 in

Additional Information

Country of Origin (Primary) US
Harmonized Tariff Code (Schedule B) 8512202000
UPC 00044464990262
VMRS Code 034004253

PETERSON LIGHTING 194R Cross Reference

We have 1 alternatives for the 194R by PETERSON LIGHTING:

Peterson Lighting® is a family-owned company that produces and distributes vehicle safety lighting systems mirrors, and other related safety products and accessories. It has been in the business for 75 years, and currently, it offers over 2,200 products designed for various applications, including tilt-bed and cargo vehicles and light- and medium-duty trailers. Peterson Lighting believes that full commitment to quality is its responsibility as a market leader. All its components are designed and manufactured only in its ISO 9001/QS-9000-certified facility in Grandview, MO. This facility is handled by knowledgeable and highly skilled specialists, who are as dedicated and passionate as the company when it comes to quality.
