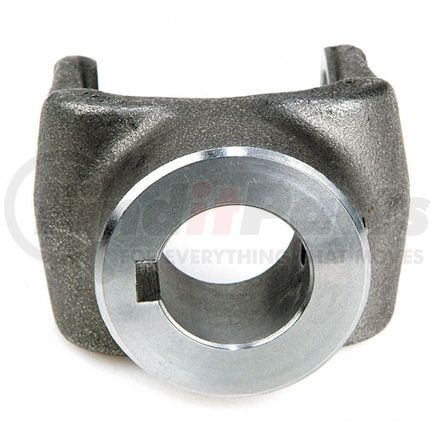

Moog 1217 - Power Take Off (PTO) End Yoke
$2949
5 day lead time
limited availability at this price!
. Learn more
MOOG part description
- Low swell in hydrocarbon fluids
- Design type: spring loaded: multi-lip
- Provides good low temperature capability
- Temperature range: -40°F to 225°F: -40°C to 107°C
- Delivers quality and reliable performance for every type of repair
Part Specifications
| Part Description | Oil Seal |
| Shaft (Inch) | 1.575 |
| Shaft (MM) | 40 |
| Housing Bore (Inch) | 2.047 |
| Housing Bore (MM) | 52 |
| Outside Diameter (Inch) | 2.058 |
| Outside Diameter (MM) | 52.280 |
| Flanged Outside Diameter (Inch) | 2.205 |
| Flanged Outside Diameter (MM) | 56 |
| Width (Inch) | 0.354 |
| Width (MM) | 9 |
| Material | Polyacrylate |
| Type | 35 |
| Footnote | Flanged O.D. |
| Series | 1000 |
Product Description
Power Take Off (PTO) End Yoke
Features & Benefits
- Machined bodies to meet the tight tolerances
- Forged and cast material to meet the performance requirement
- Minimize the flash lines for less interference
- Cleaning process induces compressive strength for increased performance
- Machined and threaded holes for mounting ease
- Rust preventative added for longer shelf life
Product Attributes
| Bore (in) | 1 1/8" |
| Comments | Round Bore with Keyway on Ear at 3 |
| Keyway (in) | 5/16" |
| Length (in) | 2 3/4" |
| Part Description | Power Take Off (PTO) End Yoke |
| Series | 1200 Series |
| Set Screw | 9 |
Additional Information
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708991590 |
| Harmonized Tariff Code (Schedule B) | 8708996890 |
| Harmonized Tariff Code (HTS) | 8708996890 |
| UPC | 00080066601106 |
Part Interchanges
For over 100 years, Moog® has been an industry leader in mid- to high-end aftermarket parts for steering, suspension, and driveline systems worldwide. Utilized by daily commuters to entire fleets, Moog parts have become synonymous with reliable performance that’s just as good or even better than their OE counterparts. Moog also incorporates innovative features in their products not found in competing products, such as patented forged steel bodies and metal “gusher” bearings that greatly reduce friction across moving components. The brand also leads the way in after-sales support, with comprehensive technical assistance and training materials available for customers around the world.
