MOOG part description

Engineered for optimal performance, the National® taper bearing cup delivers long-lasting durability.
National® Oil Seals & Bearings offer a full line of premium oil seals and bearings.
  • Premium bearing design matches OEM specifications
  • Precision manufactured using premium-grade steel for outstanding durability and performance
  • Crowned raceways and rollers to ensure even load distribution for maximum life
  • Industry leading coverage
  • Professional technicians know they can depend on National

Product Description

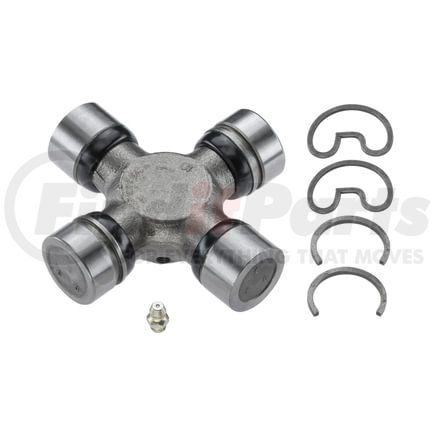

Greaseable Premium Universal Joint

Features & Benefits

  • BUILT TO LAST -- Rugged design specifically engineered for fleets, off-highway and commercial vehicles
  • STRONG AND DURABLE -- Bearing cups are cold-formed, case-hardened and precision ground for strength and durability
  • KEEPS DIRT OUT -- Abrasion-resistant nitrile seals provide ideal grease retention and protection from under-vehicle contaminants
  • GREASEABLE DESIGN -- Drilled and tapped grease fitting holes for easy servicing and cross trunnions with large grease reservoirs with radial grease channels for grease distribution
  • INHIBITS PREMATURE WEAR -- Cross trunnions ground to a 15-25 RMS finish for a smooth surface free of microscopic grooves that can cause premature wear
  • RELIABLE PERFORMANCE -- Internal anti-drainback valve integrated into thrust washer controls lubrication flow and prevents dry startup
  • RIGOROUS TESTING -- Comprehensive testing throughout design and development processes by MOOG engineers for quality you can count on

Product Attributes

Bearing Cap Axis 1 Diameter 1.188 IN
Bearing Cap Axis 1 Diameter 30.2 MM
Bearing Cap Axis 2 Diameter 1.231 IN
Bearing Cap Axis 2 Diameter 31.2 MM
Bearing Cap Type 2 Grooved & 2 Plain Round Bearings
Bearing Type A Round Plain
Bearing Type B Round Grooved
Length Axis 1 4.187 IN
Length Axis 1 106.3 MM
Length Axis 2 3 IN
Length Axis 2 76.2 MM
Length Measurement A Outside of Bearing To Outside of Bearing
Length Measurement B Inside of Groove to Inside of Groove plus thickness of 2 Lock Rings
LUBE FITTING LOCATION Regular Lube Fitting in Cross
Greasable YES
OE Series Combination 304 x 330
U-Joint Identification 2 Grooved & 2 Plain Round Bearings
Part Description Universal Joint
Grade Type Premium

Additional Information

Country of Origin (Primary) MX
Canadian Harmonizing Tariff Code 8708991510
Harmonized Tariff Code (Schedule B) 8708996810
Harmonized Tariff Code (HTS) 8708996810
UPC 00080066607528
