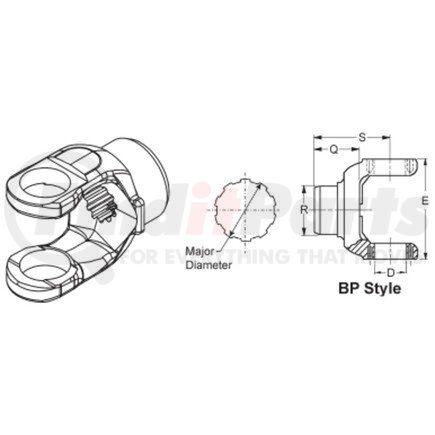

Name: Dana 6-4-9221 1710 Series Automatic Transmission Yoke - Steel, 43 Spline, BP Yoke Style
SKU: 649221
Price: 335.99 USD
Availability: InStock

DANA part description

END YOKE - Series 538

Special Note: Lead Time30 Days

Features & Benefits

Dana manufactured Spicer components are designed, engineered, tested, and manufactured to meet or exceed OE requirements.
Spicer components are engineered to meet or exceeds the performance requirements of the original factory driveline component
Tested for unparalleled reliability
Strength and durability for long life

Product Attributes

Series	1710
Material	Steel
Spline Count	43
Type	Splined Hole
Assembly	N
Hub Diameter R	3.539 IN
Involute Spline	I
Length Thru Hole Q	2.047 IN
Outside Yoke Dimension (In) E	6.094 IN
Yoke Bearing Dimension (In) D	1.938 IN
Yoke Style	SR
Major Diameter	2.178 IN
C/L To End Hub S	4.875 IN
C-Bore Depth	0.157 IN
C-Bore Diameter	2.32 IN
Joint Angle #1	22

Additional Information

Country of Origin (Primary)	MX
Harmonized Tariff Code (Schedule B)	8708990000
Harmonized Tariff Code (HTS)	8708990000
UPC	00023913223830
VMRS Code	026001083

Part Interchanges
