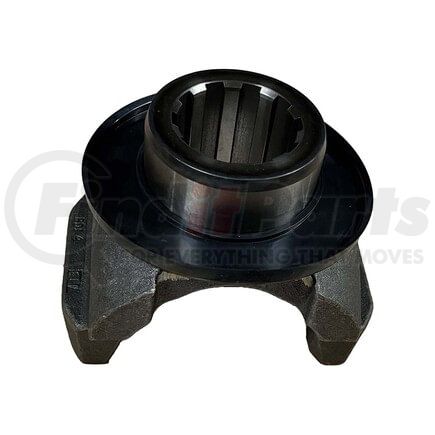

Dana 6-4-8321-1X - 1710 Series Differential End Yoke - Assembly, Steel, HR Yoke Style, 10 Spline
$29949
MSRP: $430.75
Save: $131.26
In stock
limited availability at this price!
. Learn more
DANA part description
| Brand: | Spicer |
| Series: | 1710 |
| Spline Count: | 10 |
| Yoke Style: | HR |
| Hub Diameter R: | 3.5 |
| Centerline to End Hub S: | 5.156 |
| Type: | Splined Hole |
| Outside Yoke Dimension (IN) E: | 6.19 |
| Yoke Bearing Dimension (IN) D: | 1.938 |
| Major Diameter: | 2.5 |
| Involute Spline: | N |
| VMRS: | 22003072 |
| Length Thru Hole Q: | 2.406 |
| Includes Slinger/Plug: | Y |
| Assembly: | Y |
| Material: | Steel |
| Package Type: | Each |
| Package Quantity: | 1 |
| Weight: | 13.05 lbs. |
| Country of Origin: | Mexico |
| UPC Code: | 023913217624 |
Product Attributes
| Series | 1710 |
| Material | Steel |
| Spline Count | 10 |
| Type | Splined Hole |
| Assembly | Y |
| Hub Diameter R | 3.500 IN |
| Includes Slinger/Plug | Y |
| Involute Spline | N |
| Length Thru Hole Q | 2.406 IN |
| Outside Yoke Dimension (In) E | 6.190 IN |
| Yoke Bearing Dimension (In) D | 1.938 IN |
| Yoke Style | HR |
| Major Diameter | 2.500 IN |
| C/L To End Hub S | 5.156 IN |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 8708990000 |
| Harmonized Tariff Code (HTS) | 8708990000 |
| UPC | 00023913217624 |
| VMRS Code | 022003072 |
Part Interchanges
- Daimler Truck North America 30011-3537
- Daimler Truck North America SP 6 4 8321 1X
- Dana Commercial Vehicle Service Parts 171MU51P19
- Dana Commercial Vehicle Service Parts 6-4-4421-1
- Volvo 171MU51P19
- International Harvester (IHC) 2596510C91
- International Harvester (IHC) 6483211X
- International Harvester (IHC) E6483211X
- McNeilus 2184890
- Navistar 1672009C1
- Navistar 2596510C91
- Navistar 6444211
- Navistar 6483211X
- Navistar DS6483211X
- Navistar E6483211X
- Paccar Parts 6-4-8321-1X
- Terex 11924
- Mack 171MU51P19
- Mack 2104-6483211X
- Freightliner 30011-3537
- Freightliner SP 6 4 8321 1X
DANA 6-4-8321-1X Cross Reference
We have 2 alternatives for the 6-4-8321-1X by DANA:
Dana Holding Corporation® is an internationally known company specializing in drivetrain and e-Propulsion systems. It conceptualizes, manufactures, and supplies energy-management and power- and conveyance solutions for the present-day and future vehicles and trucks. With its over 115 years of industry experience and innovation, and despite several turbulences the automotive and trucking industry has been through, Dana has managed to take the lead in revolutionary technological inventions. Dana Holding Corporation comprises different world-renowned brands catering to various market segments. These include SPICER Drivetrain Systems, VICTOR REINZ Sealing Products, LONG Thermal Products, BREVINI Motion Systems, GRAZIANO High-Performance Transmissions, FAIRFIELD Custom Gears and Drives, and a lot more.
