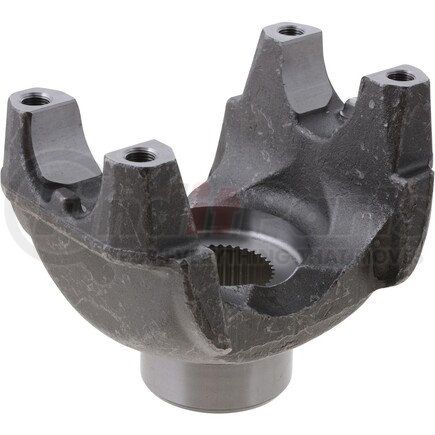

Name: Dana 6-4-7301-1 1710 Series Drive Shaft End Yoke - Steel, 38 Spline, HR Yoke Style, Splined Hole
SKU: 6473011
Price: 292.49 USD
Availability: InStock

DANA part description

Spicer 6-4-7301-1 End Yoke 2"X38Spl
6473011
PLEASE USE THE DANA ONILNE END YOKE CATALOG TO SELECT YOUR PART NUMBERS

6-4-7301-1
JOINT SERIES:1710
D DIMENSION:1.94
E DIMENSION:6.09
YOKE STYLE:Half Round
Q LENGTH THRU HOLE:2.125
R HUB DIAMETER:2.75
S CENTERLINE TO END:5.25
SPLINE COUNT:38 I
SPLINE OD:1.998
NOTES:

Dana Holding Corporation Spicer 1710 Series End Yoke

The Dana Holding Corporation Spicer 1710 Joint Series end yoke efficiently links the transmission to the drive axle. Installing this component addresses the signs of a failing yoke and u-joint, which include squeaking noise when moving forward or reverse, vibration when running at high speeds, and many others.

Features & Benefits

Top-quality 1710 series manual transmission output end yoke
Durably engineered to improve a vehicle or a construction equipment’s performance and efficiency
Integrates cutting-edge technologies to make a vehicle or machine more productive on the job site
Meets strict quality standards for dependable functionality even under the harshest operating environment
Backed by the company’s over 115 years of innovation and technological revolutions

Features & Benefits

Uses high-grade Dana approved materials to ensure optimal quality.
Dana designed, tested and engineered.
Genuine OE quality. Tested and proven.

Product Attributes

Series	1710
Material	Steel
Spline Count	38
Type	Splined Hole
Assembly	N
Hub Diameter R	2.750 IN
Includes Slinger/Plug	N
Involute Spline	I
Length Thru Hole Q	2.125 IN
Outside Yoke Dimension (In) E	6.190 IN
Yoke Bearing Dimension (In) D	1.938 IN
Yoke Style	HR
Major Diameter	1.998 IN
C/L To End Hub S	5.250 IN
Joint Angle #1	34.5

Additional Information

Country of Origin (Primary)	MX
Harmonized Tariff Code (Schedule B)	8708990000
Harmonized Tariff Code (HTS)	8708990000
UPC	00023913213268
VMRS Code	026001083

Part Interchanges

DANA 6-4-7301-1 Cross Reference

We have 2 alternatives for the 6-4-7301-1 by DANA:

Dana Holding Corporation® is an internationally known company specializing in drivetrain and e-Propulsion systems. It conceptualizes, manufactures, and supplies energy-management and power- and conveyance solutions for the present-day and future vehicles and trucks. With its over 115 years of industry experience and innovation, and despite several turbulences the automotive and trucking industry has been through, Dana has managed to take the lead in revolutionary technological inventions. Dana Holding Corporation comprises different world-renowned brands catering to various market segments. These include SPICER Drivetrain Systems, VICTOR REINZ Sealing Products, LONG Thermal Products, BREVINI Motion Systems, GRAZIANO High-Performance Transmissions, FAIRFIELD Custom Gears and Drives, and a lot more.
