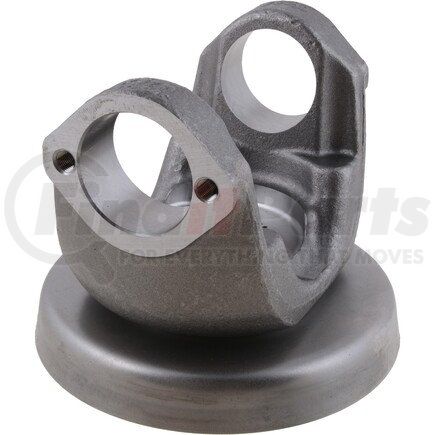

Name: Dana 6-4-6941X 1710 Series Differential End Yoke - Assembly, Steel, BP Yoke Style, 39 Spline
SKU: 646941x
Price: 299.99 USD
Availability: InStock

DANA part description

End yoke assy - Series 7574

Product Attributes

Series	1710
Material	Steel
Spline Count	39
Type	Splined Hole
Assembly	Y
Hub Diameter R	2.750 IN
Includes Slinger/Plug	Y
Involute Spline	N
Length Thru Hole Q	2.438 IN
Outside Yoke Dimension (In) E	6.094 IN
Yoke Bearing Dimension (In) D	1.938 IN
Yoke Style	BP
Major Diameter	2.024 IN
C/L To End Hub S	4.812 IN
C-Bore Depth	0.900 IN

Additional Information

Country of Origin (Primary)	MX
Harmonized Tariff Code (Schedule B)	8708990000
Harmonized Tariff Code (HTS)	8708990000
UPC	00023913221515
VMRS Code	022003072

Part Interchanges

DANA 6-4-6941X Cross Reference

We have 1 alternatives for the 6-4-6941X by DANA:

MERITOR 17N-4-6941X
