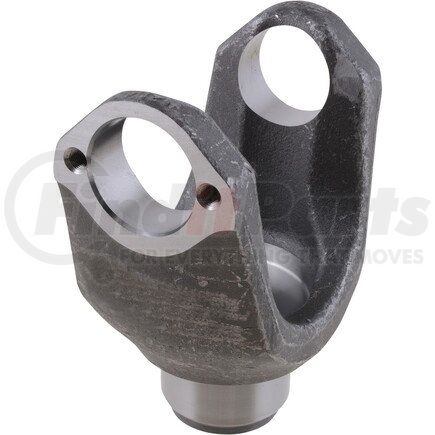

(888) 312-8812 Login SignupDANA 6-4-6451 1710 Series Differential End Yoke - Non-Assembly, Steel, BP Yoke Style, 34 Spline
Tap to view 4 more
MSRP: $578.33
$49999
Save $78.34
Limited availability at this price!
In Stock
Get it by Monday, Jan 12
DANA 6-4-6451 Part Description
Manufacturer
| Spline OD | 1.79 |
| No of Splines | 34 I |
| R Hub Dia | 2.625 |
| Q Len Thru Hole | 2.438 |
| S CL to End | 6.312 |
| CBore Depth | 0.25 |
| Style | BP |
| FN | * |
DANA 6-4-6451 Specifications
Product Attributes
| Series | 1710 |
| Material | Steel |
| Spline Count | 34 |
| Type | Splined Hole |
| Assembly | N |
| Hub Diameter R | 2.625 IN |
| Includes Slinger/Plug | N |
| Involute Spline | I |
| Length Thru Hole Q | 2.438 IN |
| Outside Yoke Dimension (In) E | 6.094 IN |
| Yoke Bearing Dimension (In) D | 1.938 IN |
| Yoke Style | BP |
| Major Diameter | 1.790 IN |
| C/L To End Hub S | 6.312 IN |
| C-Bore Depth | 0.250 IN |
| C-Bore Diameter | 1.810 IN |
| Joint Angle #1 | 45 |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 8708990000 |
| Harmonized Tariff Code (HTS) | 8708990000 |
| UPC | 00023913215224 |
| VMRS Code | 022004082 |
DANA 6-4-6451 Part Interchanges
| Brand | Part Number |
|---|---|
| Meritor | 17NYS28-52 |
| Allison Transmission | 02099836 |
| Daimler Truck North America | 30006-0158, SP 6 4 6451, SP 6 4 6451HP |
| Dana Commercial Vehicle Service Parts | 171MU52P8, 2104-646451, 38MU429 |
| General Motors | 02099836 |
| Volvo | 171MU52P8, 2104-646451, 30006-0158, 38MU429, SP 646451 |
| International Harvester (IHC) | 1676160C1, 646451, D646451, E646451, ZJU646451 |
| Navistar | 1676160C1, 646451, D646451, DS646451, E646451, ZJU646451 |
| Paccar Parts | 6/4/6451 |
| Rockwell International | 17NYS28-52 |
| Mack | 171MU52P8, 2104-646451, 25154021, 25182225, 38MU429 |
| Freightliner | 30006-0158, SP 6 4 6451, SP 6 4 6451HP |
| Peterbilt | 129205A, 2GH245 |
| Neapco OE Series | N6-4-6451 |
DANA 6-4-6451 Cross References
We have 2 alternatives for the 6-4-6451 by DANA:
