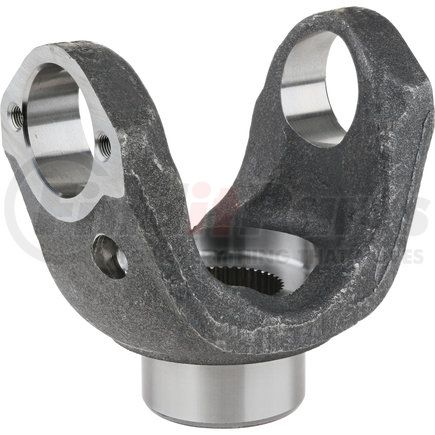

Name: Dana 6-4-5851 PTO SHAFT END YOKE
SKU: 645851
Price: 176.49 USD
Availability: InStock

DANA part description

Spicer 6-4-5851 End Yoke 2.016 X 39 Spline
645851
PLEASE USE THE DANA ONILNE END YOKE CATALOG TO SELECT YOUR PART NUMBERS

6-4-5851
JOINT SERIES:1710
D DIMENSION:1.94
E DIMENSION:6.09
YOKE STYLE:Bearing Plate
Q LENGTH THRU HOLE:2.0
R HUB DIAMETER:2.75
S CENTERLINE TO END:5.00
SPLINE COUNT:
SPLINE OD:
NOTES:

Features & Benefits

Genuine OE quality. Tested and proven.
Built to meet OE standards set by Dana.
Tested and validated to rigorous OE specifications.
Latest production upgrades ensure genuine Spicer parts are as good or better than the OE parts they replace.

Product Attributes

Series	1710
Spline Count	39
Assembly	Y
Hub Diameter R	2.750 IN
Includes Slinger/Plug	Y
Length Thru Hole Q	2.000 IN
Yoke Style	BP
C/L To End Hub S	5.000 IN
O.D. of Spline	2.024 IN
C-Bore Depth	0.120 IN
C-Bore Diameter	2.06 IN
Joint Angle #1	33.5

Additional Information

Country of Origin (Primary)	MX
Harmonized Tariff Code (Schedule B)	8708990000
Harmonized Tariff Code (HTS)	8708990000
UPC	00023913216443
VMRS Code	056002014

Part Interchanges
