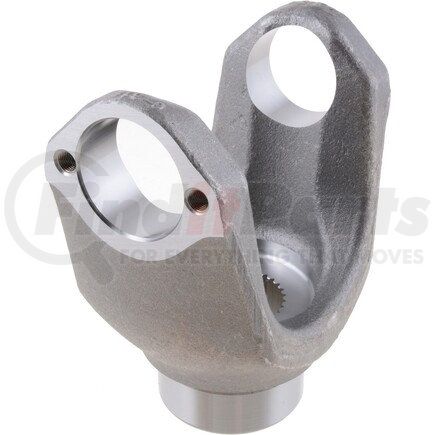

Name: Dana 6-4-5791 1710 Series Power Take Off (PTO) End Yoke - Steel, 6.250 C/L To End Hub S, BP Yoke Style
SKU: 645791
Price: 448.99 USD
Availability: InStock

DANA part description

Spicer 6-4-5791 End Yoke 2.109 X 32 Spline
645791
PLEASE USE THE DANA ONILNE END YOKE CATALOG TO SELECT YOUR PART NUMBERS

6-4-5791
JOINT SERIES:1710
D DIMENSION:1.94
E DIMENSION:6.09
YOKE STYLE:Bearing Plate
Q LENGTH THRU HOLE:2.25
R HUB DIAMETER:3.00
S CENTERLINE TO END:6.25
SPLINE COUNT:
SPLINE OD:
NOTES:

Features & Benefits

Genuine OE quality. Tested and proven.
Built to meet OE standards set by Dana.
Tested and validated to rigorous OE specifications.
Latest production upgrades ensure genuine Spicer parts are as good or better than the OE parts they replace.

Product Attributes

Series	1710
Material	Steel
Spline Count	32
Type	Splined Hole
Assembly	Y
Hub Diameter R	3.000 IN
Includes Slinger/Plug	Y
Involute Spline	I
Length Thru Hole Q	2.250 IN
Outside Yoke Dimension (In) E	6.094 IN
Yoke Bearing Dimension (In) D	1.938 IN
Yoke Style	BP
Major Diameter	2.114 IN
C/L To End Hub S	6.250 IN
C-Bore Depth	0.424 IN
C-Bore Diameter	2.25 IN
Joint Angle #1	45

Additional Information

Country of Origin (Primary)	MX
Harmonized Tariff Code (Schedule B)	8708990000
Harmonized Tariff Code (HTS)	8708990000
UPC	00023913219208
VMRS Code	056002014

Part Interchanges
