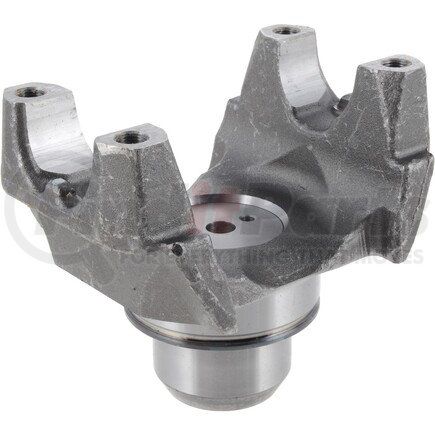

Name: Dana 6-4-5041-1X 1710 Series Automatic Transmission Yoke - Steel, 34 Spline, HR Yoke Style
SKU: 6450411x
Price: 415.99 USD
Availability: InStock

DANA part description

Spicer 6-4-5041-1X Half Round End Yoke
6450411X
PLEASE USE THE DANA ONILNE END YOKE CATALOG TO SELECT YOUR PART NUMBERS

6-4-5041-1X
JOINT SERIES:1710
D DIMENSION:1.94
E DIMENSION:6.09
YOKE STYLE:Half Round
Q LENGTH THRU HOLE:2.75
R HUB DIAMETER:2.562
S CENTERLINE TO END:5.594
SPLINE COUNT:34 I
SPLINE OD:1.79
NOTES:

Features & Benefits

Dana manufactured Spicer components are designed, engineered, tested, and manufactured to meet or exceed OE requirements.
Spicer components are engineered to meet or exceeds the performance requirements of the original factory driveline component
Tested for unparalleled reliability
Strength and durability for long life

Product Attributes

Series	1710
Material	Steel
Spline Count	34
Type	Splined Hole
Assembly	Y
Hub Diameter R	2.562 IN
Includes Slinger/Plug	Y
Involute Spline	Y
Length Thru Hole Q	2.750 IN
Outside Yoke Dimension (In) E	6.190 IN
Yoke Bearing Dimension (In) D	1.938 IN
Yoke Style	HR
Major Diameter	1.790 IN
C/L To End Hub S	5.594 IN

Additional Information

Country of Origin (Primary)	MX
Harmonized Tariff Code (Schedule B)	8708990000
Harmonized Tariff Code (HTS)	8708990000
UPC	00023913218928
VMRS Code	026001083

Part Interchanges

DANA 6-4-5041-1X Cross Reference

We have 2 alternatives for the 6-4-5041-1X by DANA:
