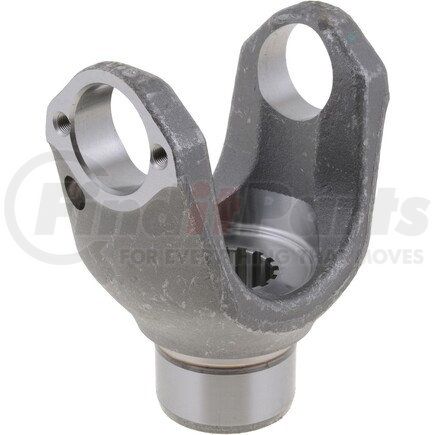

(888) 312-8812 Login SignupDANA 6-4-4591 1710 Series Differential End Yoke - Assembly, BP Yoke Style, 16 Spline
Tap to view 2 more
MSRP: $490.03
$30549
Save $184.54
Limited availability at this price!
In Stock
Get it by Wednesday, Dec 31
DANA 6-4-4591 Part Description
Manufacturer
Specifications
| Brand | Spicer |
| Series | 1710 |
| Spline Count | 16 |
| Yoke Style | BP |
| Hub Diameter R | 2.938 |
| C/L To End Hub S | 6.625 |
| Involute Spline | |
| Length Thru Hole Q | 3.000 |
| VMRS | 022004082 |
| C-Bore Depth | 0.380 |
| Includes Slinger/Plug | Y |
| Assembly | Y |
| Joint Angle #1 | 38 |
| C-Bore Diameter | 2.2 |
| O.D. of Spline | 2.149 |
| Package Type | EACH |
| Package Qty | 1 |
| Weight | 13.01 LB |
| Country of Origin | Mexico |
DANA 6-4-4591 Specifications
Product Attributes
| Series | 1710 |
| Spline Count | 16 |
| Assembly | Y |
| Hub Diameter R | 2.938 IN |
| Includes Slinger/Plug | Y |
| Length Thru Hole Q | 3.000 IN |
| Yoke Style | BP |
| C/L To End Hub S | 6.625 IN |
| O.D. of Spline | 2.149 IN |
| C-Bore Depth | 0.380 IN |
| C-Bore Diameter | 2.2 IN |
| Joint Angle #1 | 38 |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 8708990000 |
| Harmonized Tariff Code (HTS) | 8708990000 |
| UPC | 00023913217082 |
| VMRS Code | 022004082 |
DANA 6-4-4591 Part Interchanges
| Brand | Part Number |
|---|---|
| Meritor | 17NYS34-8 |
| Eaton | 083800, 119911 |
| Ingersoll Rand | 945870 |
| Allison Transmission | 00690039 |
| Daimler Truck North America | 02-7103345, SP 6 4 4161, SP 6 4 4591HP |
| Dana Commercial Vehicle Service Parts | 083800, 171MU52P35, 2104-644591, 6-4-4591SB |
| Dresser | 945870 |
| General Motors | 00690039 |
| Volvo | 02-7103345, 171MU52P35, 2104-644591, SP 644591 |
| International Harvester (IHC) | 417663C1, 644591, D644591, E644591 |
| Navistar | 417663C1, D644591, DS644591, E644591, ETN0083800 |
| Paccar Parts | 6/4/4591, 644591, 983024 |
| Rockwell International | 17NYS34-8 |
| Mack | 171MU52P35, 2104-644591 |
| Freightliner | 02-7103345, SP 6 4 4161, SP 6 4 4591HP |
| Peterbilt | 126833A |
DANA 6-4-4591 Cross References
We have 3 alternatives for the 6-4-4591 by DANA:
