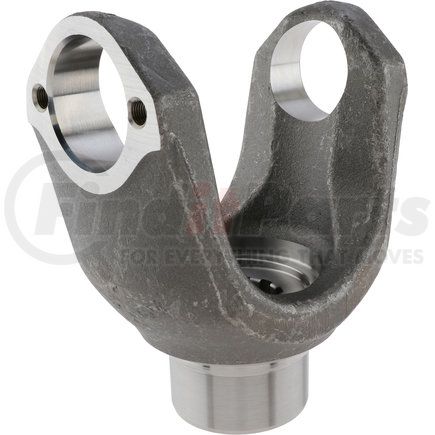

DANA 6-4-4091 Part Description
Manufacturer
| Brand: | Spicer |
| Series: | 1710 |
| Spline Count: | 10 |
| Yoke Style: | BP |
| Hub Diameter R: | 2.75 |
| Centerline to End Hub S: | 6.25 |
| Involute Spline: | |
| Length Thru Hole Q: | 2.25 |
| VMRS: | 22003072 |
| Includes Slinger/Plug: | Y |
| Assembly: | Y |
| Joint Angle #1: | 45 |
| O.D. of Spline: | 1.75 |
| Package Type: | Each |
| Package Quantity: | 1 |
| Weight: | 12.46 lbs. |
| Country of Origin: | Mexico |
| UPC Code: | 023913219758 |
DANA 6-4-4091 Specifications
Product Attributes
| Series | 1710 |
| Spline Count | 10 |
| Assembly | Y |
| Hub Diameter R | 2.750 IN |
| Includes Slinger/Plug | Y |
| Length Thru Hole Q | 2.250 IN |
| Yoke Style | BP |
| C/L To End Hub S | 6.250 IN |
| O.D. of Spline | 1.75 IN |
| Joint Angle #1 | 45 |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 8708990000 |
| Harmonized Tariff Code (HTS) | 8708990000 |
| UPC | 00023913219758 |
| VMRS Code | 022003072 |
DANA 6-4-4091 Part Interchanges
| Brand | Part Number |
|---|---|
| Meritor | 17N 4 4091, 17N44091, 17NYS28-2 |
| Daimler Truck North America | 561499, SP 6 4 4091, SP 6 4 4091HP |
| Dana Commercial Vehicle Service Parts | 2104-644091, 6-4-4831X, 6-4-4841X |
| Volvo | 2104-644091, 561499, SP 644091 |
| International Harvester (IHC) | 513595C1, 644091, D644091, E644091, ZFT644091, ZJU644091, ZKC644091 |
| Navistar | 513595C1, 644091, D644091, DS644091, E644091, E644831X, ZFT644091, ZJU644091, ZKC644091 |
| Rockwell International | 17NYS28-2 |
| Mack | 2104-644091 |
| Freightliner | 561499, SP 6 4 4091, SP 6 4 4091HP |
| Peterbilt | 19TN998 |
DANA 6-4-4091 Cross References
We have 1 alternatives for the 6-4-4091 by DANA:
