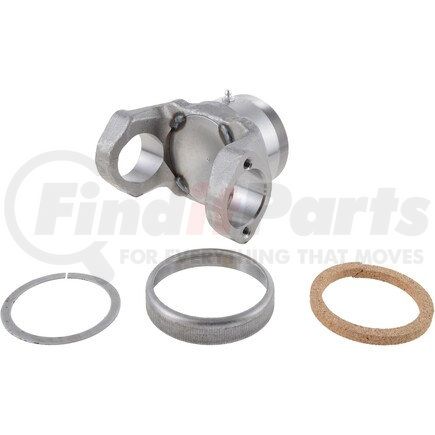

Name: Dana 6-3-1661KX 1710 Series Drive Shaft Slip Yoke - Steel, 18 Spline, 3.250 in. OD Spline, BP Style
SKU: 631661kx
Price: 608.49 USD
Availability: InStock

DANA part description

Brand:	Spicer
Series:	1710
Material:	Steel
Outside Yoke Dimension (E) IN.:	6.094
Bearing Cap Diameter (D) IN.:	1.938
Centerline to End of Spline (J) IN.:	4.125
Centerline to Face of Plug (F) IN.:	1.375
Spline O.D.:	3.25
No. of Splines:	18
Involute:	Y
Style:	BP
VMRS:	24002038
Joint Angle #1:	8
Package Type:	Each
Package Quantity:	1
Country of Origin:	Mexico
UPC Code:	023913213848

Features & Benefits

Uses high-grade Dana approved materials to ensure optimal quality.
Dana designed, tested and engineered.
Genuine Spicer Product
Meets or exceeds OE standards.

Product Attributes

Series	1710
Material	Steel
Style	BP
Joint Angle #1	8.0
C/L To End Of Spline (J) In.	4.125 IN
C/L To Face Of Plug (F) In.	1.375 IN
No. Of Splines	18
Bearing Cap Diameter (D) In.	1.938 IN
Outside Yoke Dimension (E) In.	6.094 IN
Involute	Y
Spline O.D.	3.250 IN

Additional Information

Country of Origin (Primary)	MX
Harmonized Tariff Code (Schedule B)	8708990000
Harmonized Tariff Code (HTS)	8708990000
UPC	00023913213848
VMRS Code	024002038

Part Interchanges

DANA 6-3-1661KX Cross Reference

We have 2 alternatives for the 6-3-1661KX by DANA:
