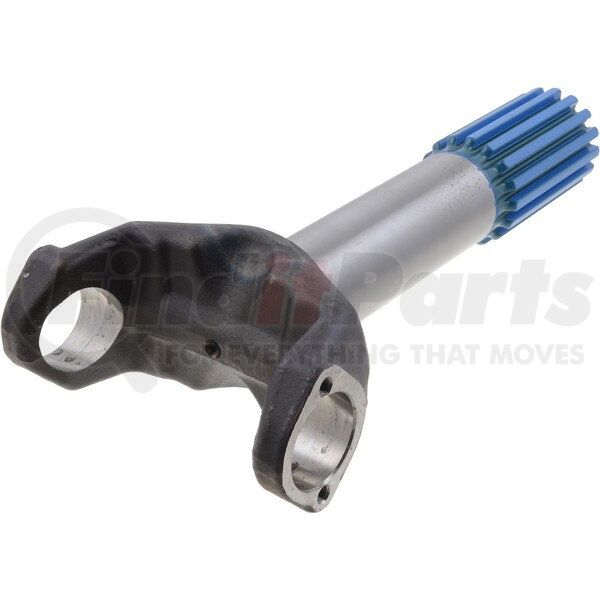

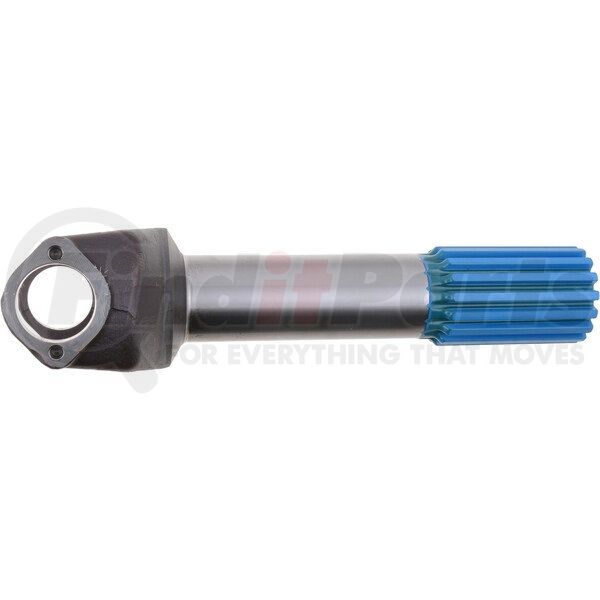

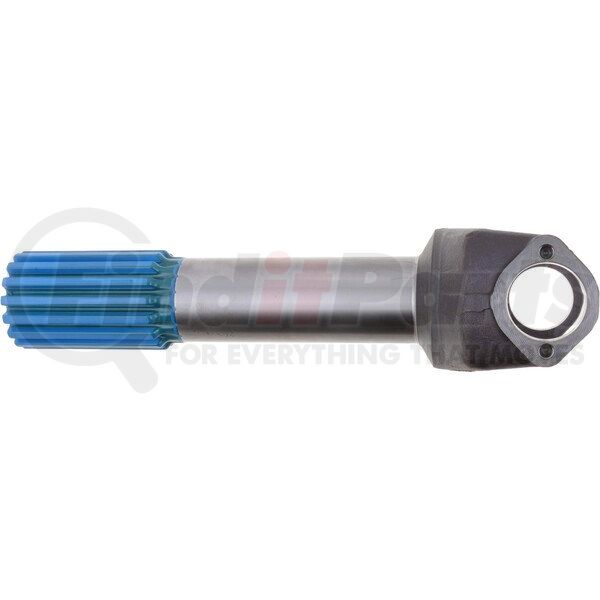

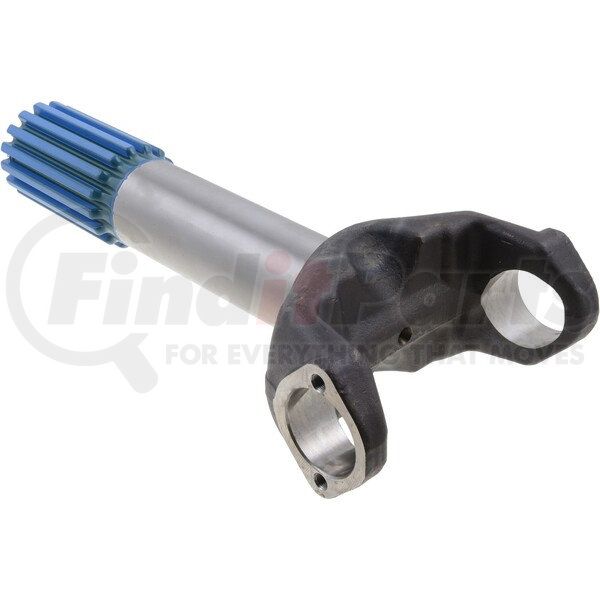

Name: Dana 6.5-82-461-11 1810 Series Drive Shaft Yoke Shaft - 16 Spline, BP Style
SKU: 658246111
Price: 1079.99 USD
Availability: InStock

DANA part description

YOKE SHAFT - Series 7373

Product Attributes

Series	1810
Spline Count	16
Style	BP

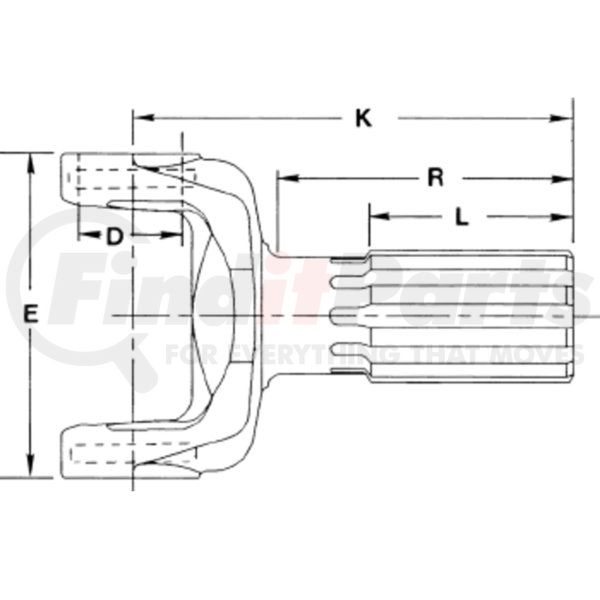

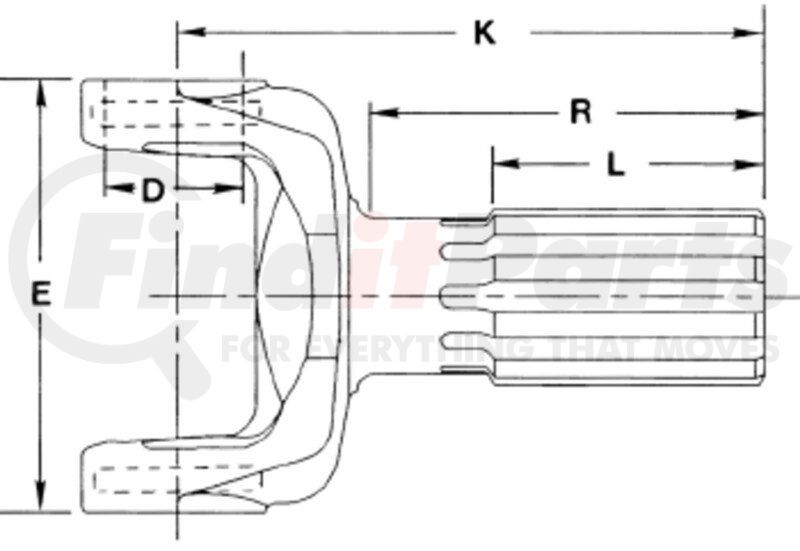

Centerline To End Of Splne (K)	15.688 IN
Major Spline Diameter	3.000 IN
Spline Length (L) In	4.500 IN
Angle #1	45.0
Spline Hole Minor Diameter	2.578 IN
Spline Width	0.281 IN
End/Spline To Point/Rad. (R)	12.062 IN

Additional Information

Country of Origin (Primary)	US
Harmonized Tariff Code (Schedule B)	8708990000
Harmonized Tariff Code (HTS)	8708990000
UPC	00023913213022
VMRS Code	024002061

Part Interchanges

DANA 6.5-82-461-11 Cross Reference

We have 2 alternatives for the 6.5-82-461-11 by DANA:
