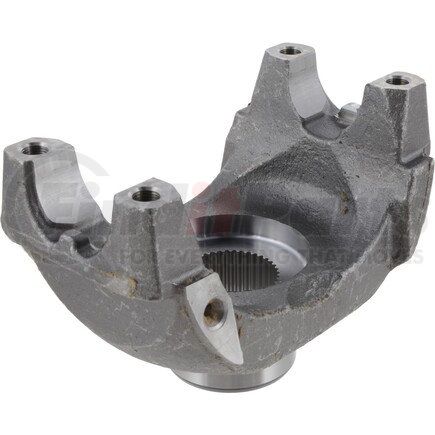

Name: Dana 6.5-4-3261-1 1810 Series Power Take Off (PTO) End Yoke - Steel, 5.188 C/L To End Hub S, HR Yoke Style
SKU: 65432611
Price: 169.99 USD
Availability: InStock

DANA part description

Specifications

Brand	Spicer
Series	1810
Spline Count	39
Yoke Style	HR
Hub Diameter R	2.750
C/L To End Hub S	5.188
Type	Splined Hole
Outside Yoke Dimension (In) E	7.643
Yoke Bearing Dimension (In) D	1.938
Major Diameter	2.024
Involute Spline	N
Length Thru Hole Q	2.000
VMRS	056002014
C-Bore Depth	0.125
Includes Slinger/Plug	Y
Assembly	Y
Material	Steel
Joint Angle #1	30
C-Bore Diameter	2.06
Package Type	EACH
Package Qty	1
Weight	8.03 LB
Country of Origin	Mexico

Product Description

Features & Benefits

Genuine OE quality. Tested and proven.
Built to meet OE standards set by Dana.
Tested and validated to rigorous OE specifications.
Latest production upgrades ensure genuine Spicer parts are as good or better than the OE parts they replace.

Product Attributes

Series	1810
Material	Steel
Spline Count	39
Type	Splined Hole
Assembly	Y
Hub Diameter R	2.750 IN
Includes Slinger/Plug	Y
Involute Spline	N
Length Thru Hole Q	2.000 IN
Outside Yoke Dimension (In) E	7.643 IN
Yoke Bearing Dimension (In) D	1.938 IN
Yoke Style	HR
Major Diameter	2.024 IN
C/L To End Hub S	5.188 IN
C-Bore Depth	0.125 IN
C-Bore Diameter	2.06 IN
Joint Angle #1	30

Additional Information

Country of Origin (Primary)	MX
Harmonized Tariff Code (Schedule B)	8708990000
Harmonized Tariff Code (HTS)	8708990000
UPC	00023913218560
VMRS Code	056002014

Part Interchanges

DANA 6.5-4-3261-1 Cross Reference

We have 3 alternatives for the 6.5-4-3261-1 by DANA:

Dana Holding Corporation® is an internationally known company specializing in drivetrain and e-Propulsion systems. It conceptualizes, manufactures, and supplies energy-management and power- and conveyance solutions for the present-day and future vehicles and trucks. With its over 115 years of industry experience and innovation, and despite several turbulences the automotive and trucking industry has been through, Dana has managed to take the lead in revolutionary technological inventions. Dana Holding Corporation comprises different world-renowned brands catering to various market segments. These include SPICER Drivetrain Systems, VICTOR REINZ Sealing Products, LONG Thermal Products, BREVINI Motion Systems, GRAZIANO High-Performance Transmissions, FAIRFIELD Custom Gears and Drives, and a lot more.
