Dana 6.5-4-2401X - 1810 Series Differential End Yoke - Assembly, Steel, BP Yoke Style, 16 Spline
$58949
MSRP: $765.59
Save: $176.10
In stock
limited availability at this price!
. Learn more
DANA part description
Specifications
| Brand | Spicer |
| Series | 1810 |
| Spline Count | 16 |

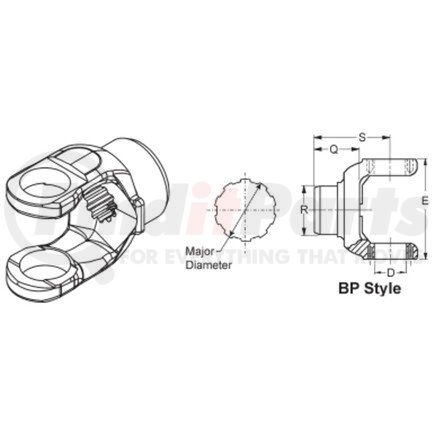

| Yoke Style | BP |
| Hub Diameter R | 2.938 |
| C/L To End Hub S | 5.812 |
| Type | Splined Hole |
| Major Diameter | 2.149 |
| Involute Spline | N |
| Length Thru Hole Q | 3.000 |
| VMRS | 022003072 |
| C-Bore Depth | 0.380 |
| Includes Slinger/Plug | Y |
| Assembly | Y |
| Material | Steel |
| Package Type | EACH |
| Package Qty | 1 |
| Weight | 6.62 LB |
| Country of Origin | Mexico |
Product Attributes
| Series | 1810 |
| Material | Steel |
| Spline Count | 16 |
| Type | Splined Hole |
| Assembly | Y |
| Hub Diameter R | 2.938 IN |
| Includes Slinger/Plug | Y |
| Involute Spline | N |
| Length Thru Hole Q | 3.000 IN |
| Yoke Style | BP |
| Major Diameter | 2.149 IN |
| C/L To End Hub S | 5.812 IN |
| C-Bore Depth | 0.380 IN |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 8708990000 |
| Harmonized Tariff Code (HTS) | 8708990000 |
| UPC | 00023913220204 |
| VMRS Code | 022003072 |
Part Interchanges
- Daimler Truck North America SP 6.5 4 2401X
- Daimler Truck North America SP 6.5 4 2401XHP
- Dana Commercial Vehicle Service Parts 087512
- Dana Commercial Vehicle Service Parts 2104-6542401X
- Dana Commercial Vehicle Service Parts 38MU39315
- Volvo 2104-6542401X
- Volvo 38MU39315
- Volvo 6542401X
- Volvo SP 6542401X
- International Harvester (IHC) 2502800C91
- International Harvester (IHC) 6542401X
- International Harvester (IHC) D6542401X
- International Harvester (IHC) E6542401X
- Navistar 2502800C91
- Navistar D6542401X
- Navistar DS6542401X
- Navistar E6542401X
- Navistar ETN0087512
- Navistar ETN0087513
- Paccar Parts 6.5-4-2401X
- Rockwell International 18N-4-2291
- Rockwell International 18N-4-2401X
- Mack 2104-6542401X
- Mack 38MU39315
- Freightliner SP 6.5 4 2401X
- Freightliner SP 6.5 4 2401XHP
- Peterbilt 181DS43
- UAP 6.5-4-2401X
DANA 6.5-4-2401X Cross Reference
We have 4 alternatives for the 6.5-4-2401X by DANA:
Dana Holding Corporation® is an internationally known company specializing in drivetrain and e-Propulsion systems. It conceptualizes, manufactures, and supplies energy-management and power- and conveyance solutions for the present-day and future vehicles and trucks. With its over 115 years of industry experience and innovation, and despite several turbulences the automotive and trucking industry has been through, Dana has managed to take the lead in revolutionary technological inventions. Dana Holding Corporation comprises different world-renowned brands catering to various market segments. These include SPICER Drivetrain Systems, VICTOR REINZ Sealing Products, LONG Thermal Products, BREVINI Motion Systems, GRAZIANO High-Performance Transmissions, FAIRFIELD Custom Gears and Drives, and a lot more.
