(888) 312-8812 Login SignupDANA 6.3-4-271 1760 Series Automatic Transmission Yoke - Steel, 18 Spline, BP Yoke Style
Tap to view 1 more
$56199
Limited availability at this price!
In Stock
Get it by Tuesday, Jan 13
DANA 6.3-4-271 Part Description
Manufacturer
Features & Benefits
- Dana manufactured Spicer components are designed, engineered, tested, and manufactured to meet or exceed OE requirements.
- Spicer components are engineered to meet or exceeds the performance requirements of the original factory driveline component
- Tested for unparalleled reliability
- Strength and durability for long life
End yoke - Series 7135
Special Note: Lead Time30 Days

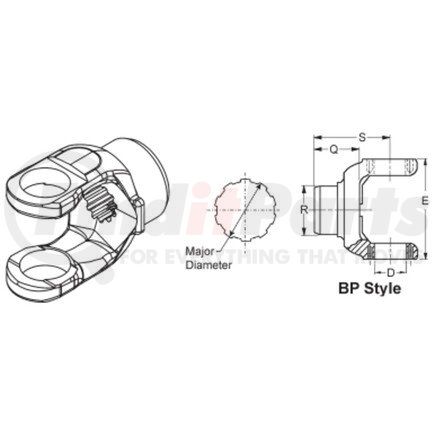

DANA 6.3-4-271 Specifications
Product Attributes
| Series | 1760 |
| Material | Steel |
| Spline Count | 18 |
| Type | Splined Hole |
| Hub Diameter R | 3.500 IN |
| Involute Spline | I |
| Length Thru Hole Q | 3.375 IN |
| Outside Yoke Dimension (In) E | 7.000 IN |
| Yoke Bearing Dimension (In) D | 1.938 IN |
| Yoke Style | BP |
| Major Diameter | 2.364 IN |
| C/L To End Hub S | 6.125 IN |
| Joint Angle #1 | 30 |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 8708990000 |
| Harmonized Tariff Code (HTS) | 8708990000 |
| UPC | 00023913225582 |
| VMRS Code | 026001083 |
DANA 6.3-4-271 Part Interchanges
| Brand | Part Number |
|---|---|
| Meritor | 176N4271 |
| Daimler Truck North America | 30006-0117, 30006-3466, SP 6.3 4 271, SP 6.3 4 271HP |
| Dana Commercial Vehicle Service Parts | 176MU52P19, 2104-634271, 38MU3390 |
| Volvo | 176MU52P19, 2104-634271, 30006-0117, 3082185, 38MU3390, SP 6 3 4 271, SP 634271 |
| International Harvester (IHC) | 634271, D634271, E634271 |
| Navistar | 634271, D634271, DS634271, E634271 |
| Paccar Parts | 6.3-4-271 |
| Rockwell International | 176N-4-271 |
| Workhorse | 3082185 |
| Mack | 176MU52P19, 176MU52P6, 2104-634271, 25061247, 25080007, 38MU3390 |
| Freightliner | 30006-0117, 30006-3466, SP 6.3 4 271, SP 6.3 4 271HP |
| UAP | 6.3-4-271 |
DANA 6.3-4-271 Cross References
We have 2 alternatives for the 6.3-4-271 by DANA:
DANA 6.3-4-271 Customer Reviews
No reviews yet
Be the first to review this product!
DANA 6.3-4-271 Manufacturer Information
Dana Holding Corporation® is an internationally known company specializing in drivetrain and e-Propulsion systems. It conceptualizes, manufactures, and supplies energy-management and power- and conveyance solutions for the present-day and future vehicles and trucks. With its over 115 years of industry experience and innovation, and despite several turbulences the automotive and trucking industry has been through, Dana has managed to take the lead in revolutionary technological inventions. Dana Holding Corporation comprises different world-renowned brands catering to various market segments. These include SPICER Drivetrain Systems, VICTOR REINZ Sealing Products, LONG Thermal Products, BREVINI Motion Systems, GRAZIANO High-Performance Transmissions, FAIRFIELD Custom Gears and Drives, and a lot more.
