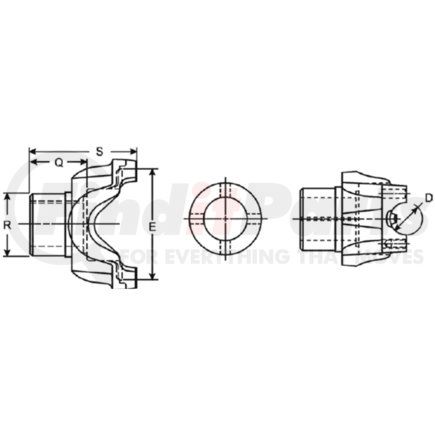

Dana 5-4-9111-1X - 1610 Series Differential End Yoke - Assembly, Steel, HR Yoke Style, 41 Spline
$66699
In stock
limited availability at this price!
. Learn more
DANA part description
Specifications
| Brand | Spicer |
| Series | 1610 |
| Spline Count | 41 |
| Yoke Style | HR |
| Hub Diameter R | 2.938 |
| C/L To End Hub S | 5.250 |
| Type | Splined Hole |
| Major Diameter | 2.143 |
| Involute Spline | Y |
| Length Thru Hole Q | 2.500 |
| VMRS | 022003072 |
| Includes Slinger/Plug | Y |
| Assembly | Y |
| Material | Steel |
| Package Type | EACH |
| Package Qty | 1 |
| Weight | 5.13 LB |
| Country of Origin | Mexico |
Product Attributes
| Series | 1610 |
| Material | Steel |
| Spline Count | 41 |
| Type | Splined Hole |
| Assembly | Y |
| Hub Diameter R | 2.938 IN |
| Includes Slinger/Plug | Y |
| Involute Spline | Y |
| Length Thru Hole Q | 2.500 IN |
| Yoke Style | HR |
| Major Diameter | 2.143 IN |
| C/L To End Hub S | 5.250 IN |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 8708990000 |
| Harmonized Tariff Code (HTS) | 8708990000 |
| UPC | 00023913222840 |
| VMRS Code | 022003072 |
Part Interchanges
- Allison Transmission 15992303
- New Holland Construction 86539513
- Daimler Truck North America SP 5 4 9111 1X
- Daimler Truck North America SP 5 4 9111 1XHP
- Dana Commercial Vehicle Service Parts 128882
- Dana Commercial Vehicle Service Parts 128889
- General Motors 15992303
- Volvo SP 5491111X
- International Harvester (IHC) 2033357C91
- International Harvester (IHC) 5491111X
- International Harvester (IHC) D5491111X
- International Harvester (IHC) E5491111X
- McNeilus 8HD685
- Navistar 2033357C91
- Navistar 5491111X
- Navistar DS5491111X
- Navistar E5491111X
- Navistar ETN0128882
- Navistar ETN0128889
- Paccar Parts 5-4-9111-1X
- Freightliner SP 5 4 9111 1X
- Freightliner SP 5 4 9111 1XHP
- Peterbilt 8HD685
DANA 5-4-9111-1X Cross Reference
We have 1 alternatives for the 5-4-9111-1X by DANA:
Dana Holding Corporation® is an internationally known company specializing in drivetrain and e-Propulsion systems. It conceptualizes, manufactures, and supplies energy-management and power- and conveyance solutions for the present-day and future vehicles and trucks. With its over 115 years of industry experience and innovation, and despite several turbulences the automotive and trucking industry has been through, Dana has managed to take the lead in revolutionary technological inventions. Dana Holding Corporation comprises different world-renowned brands catering to various market segments. These include SPICER Drivetrain Systems, VICTOR REINZ Sealing Products, LONG Thermal Products, BREVINI Motion Systems, GRAZIANO High-Performance Transmissions, FAIRFIELD Custom Gears and Drives, and a lot more.
