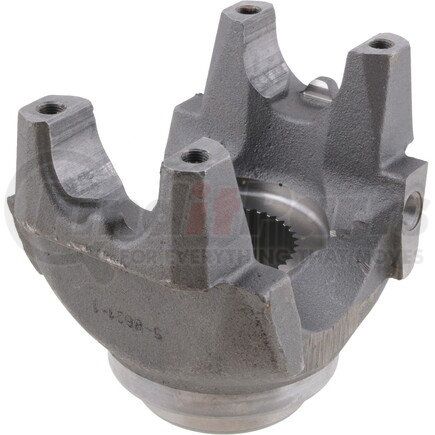

Name: Dana 5-4-8631-1X 1610 Series Differential End Yoke - Assembly, Steel, HR Yoke Style, 36 Spline
SKU: 5486311x
Price: 257.99 USD
Availability: InStock

DANA part description

Specifications

Brand	Spicer
Series	1610
Spline Count	36
Yoke Style	HR
Hub Diameter R	3.000
C/L To End Hub S	5.156
Type	Splined Hole
Outside Yoke Dimension (In) E	5.312
Yoke Bearing Dimension (In) D	1.875
Major Diameter	2.364
Involute Spline	Y
Length Thru Hole Q	2.688
VMRS	022003072
Includes Slinger/Plug	Y
Assembly	Y
Material	Steel
Package Type	EACH
Package Qty	1
Weight	9.79 LB
Country of Origin	Mexico

Product Attributes

Series	1610
Material	Steel
Spline Count	36
Type	Splined Hole
Assembly	Y
Hub Diameter R	3.000 IN
Includes Slinger/Plug	Y
Involute Spline	Y
Length Thru Hole Q	2.688 IN
Outside Yoke Dimension (In) E	5.312 IN
Yoke Bearing Dimension (In) D	1.875 IN
Yoke Style	HR
Major Diameter	2.364 IN
C/L To End Hub S	5.156 IN

Additional Information

Country of Origin (Primary)	MX
Harmonized Tariff Code (Schedule B)	8708990000
Harmonized Tariff Code (HTS)	8708990000
UPC	00023913217457
VMRS Code	022003072

Part Interchanges

DANA 5-4-8631-1X Cross Reference

We have 1 alternatives for the 5-4-8631-1X by DANA:

UAP 5-4-8631-1X
