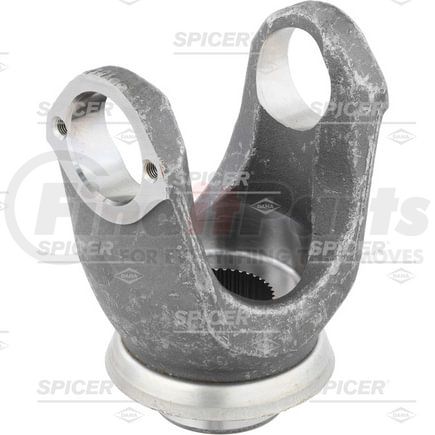

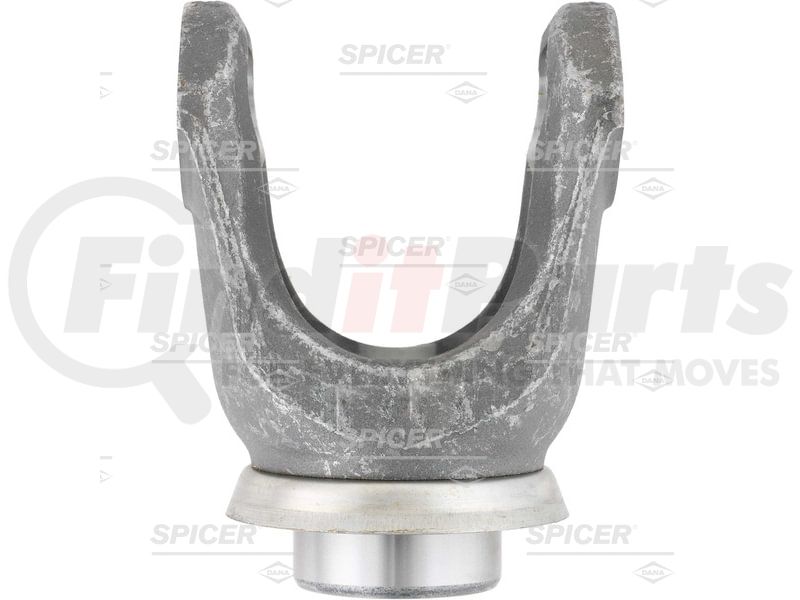

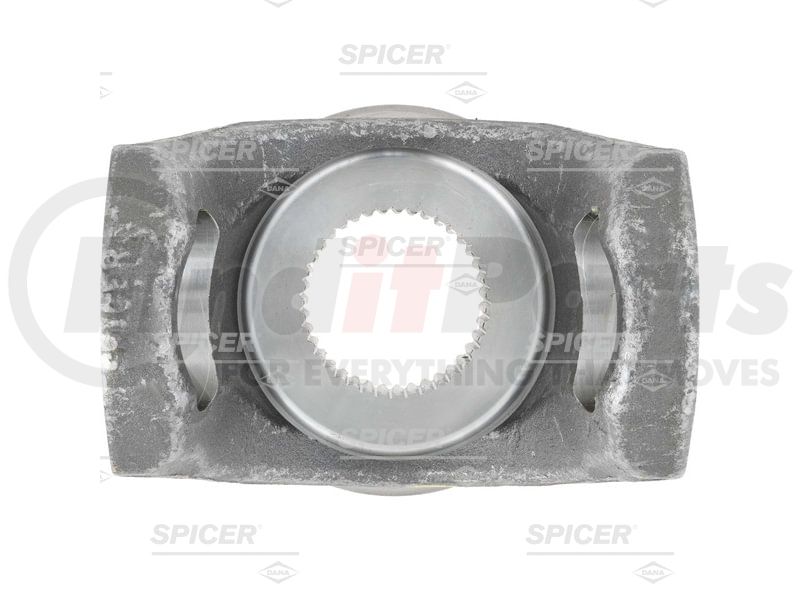

Dana 5-4-5971X - 1610 Series Differential End Yoke - Assembly, Steel, BP Yoke Style, 39 Spline
$18149
MSRP: $450.58
Save: $269.09
In stock
limited availability at this price!
. Learn more
DANA part description
| Brand: | Spicer |
| Series: | 1610 |
| Spline Count: | 39 |
| Yoke Style: | BP |
| Hub Diameter R: | 2.625 |
| Centerline to End Hub S: | 6 |
| Type: | Splined Hole |
| Major Diameter: | 2.024 |
| Involute Spline: | Y |
| Length Thru Hole Q: | 2.25 |
| VMRS: | 22003072 |
| Includes Slinger/Plug: | Y |
| Assembly: | Y |
| Material: | Steel |
| Package Type: | Each |
| Package Quantity: | 1 |
| Weight: | 9.61 lbs. |
| Country of Origin: | Mexico |
| UPC Code: | 023913221065 |
Features & Benefits
- Genuine OE quality. Tested and proven.
- Built to meet OE standards set by Dana
- Tested and validated to rigorous OE specifications
- Latest production upgrades ensure genuine Spicer parts are as good or better than the OE parts they replace
Product Attributes
| Series | 1610 |
| Material | Steel |
| Spline Count | 39 |
| Type | Splined Hole |
| Assembly | Y |
| Hub Diameter R | 2.625 IN |
| Includes Slinger/Plug | Y |
| Involute Spline | Y |
| Length Thru Hole Q | 2.250 IN |
| Yoke Style | BP |
| Major Diameter | 2.024 IN |
| C/L To End Hub S | 6.000 IN |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 8708990000 |
| Harmonized Tariff Code (HTS) | 8708990000 |
| UPC | 00023913221065 |
| VMRS Code | 022003072 |
Part Interchanges
- Allison Transmission 15656438
- Daimler Truck North America SP 5 4 5971X
- Daimler Truck North America SP 5 4 5971XHP
- Dana Commercial Vehicle Service Parts 161MU52P10
- Dana Commercial Vehicle Service Parts 2104-545971X
- General Motors 15656438
- Volvo 161MU52P10
- Volvo 2104-545971X
- Volvo SP 545971X
- International Harvester (IHC) 1662079C91
- International Harvester (IHC) 545971X
- International Harvester (IHC) D545971X
- International Harvester (IHC) E545971X
- Navistar 1662079C91
- Navistar 545961
- Navistar 545971X
- Navistar D545961
- Navistar D545971X
- Navistar DS545971X
- Navistar E545961
- Navistar E545971X
- Paccar Parts 5-4-5971X
- Mack 161MU52P10
- Mack 2104-545971X
- Freightliner SP 5 4 5971X
- Freightliner SP 5 4 5971XHP
- Peterbilt 5 4 5971X
- UAP 5-4-5971X
DANA 5-4-5971X Cross Reference
We have 3 alternatives for the 5-4-5971X by DANA:
Dana Holding Corporation® is an internationally known company specializing in drivetrain and e-Propulsion systems. It conceptualizes, manufactures, and supplies energy-management and power- and conveyance solutions for the present-day and future vehicles and trucks. With its over 115 years of industry experience and innovation, and despite several turbulences the automotive and trucking industry has been through, Dana has managed to take the lead in revolutionary technological inventions. Dana Holding Corporation comprises different world-renowned brands catering to various market segments. These include SPICER Drivetrain Systems, VICTOR REINZ Sealing Products, LONG Thermal Products, BREVINI Motion Systems, GRAZIANO High-Performance Transmissions, FAIRFIELD Custom Gears and Drives, and a lot more.
