Name: Dana 5-4-5461 1610 Series Differential End Yoke - Assembly, Steel, BP Yoke Style, 39 Spline
SKU: 545461
Price: 376.49 USD
Availability: InStock

DANA part description

Specifications

Brand	Spicer
Series	1610
Spline Count	39
Yoke Style	BP

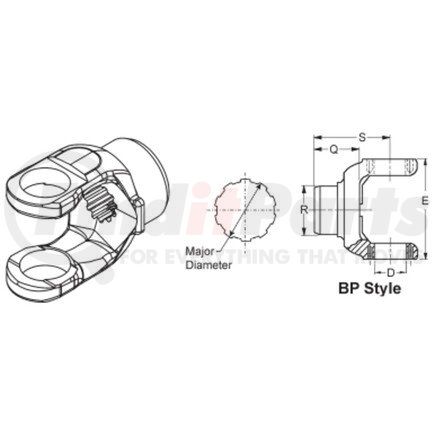

Hub Diameter R	2.750
C/L To End Hub S	6.250
Type	Splined Hole
Major Diameter	2.024
Involute Spline	N
Length Thru Hole Q	2.438
VMRS	022003072
C-Bore Depth	0.120
Includes Slinger/Plug	Y
Assembly	Y
Material	Steel
Joint Angle #1	45
C-Bore Diameter	2.072
Package Type	EACH
Package Qty	1
Weight	10.43 LB
Country of Origin	Mexico

Product Attributes

Series	1610
Material	Steel
Spline Count	39
Type	Splined Hole
Assembly	Y
Hub Diameter R	2.750 IN
Includes Slinger/Plug	Y
Involute Spline	N
Length Thru Hole Q	2.438 IN
Yoke Style	BP
Major Diameter	2.024 IN
C/L To End Hub S	6.250 IN
C-Bore Depth	0.120 IN
C-Bore Diameter	2.072 IN
Joint Angle #1	45

Additional Information

Country of Origin (Primary)	MX
Harmonized Tariff Code (Schedule B)	8708990000
Harmonized Tariff Code (HTS)	8708990000
UPC	00023913222925
VMRS Code	022003072

Part Interchanges

DANA 5-4-5461 Cross Reference

We have 2 alternatives for the 5-4-5461 by DANA:
