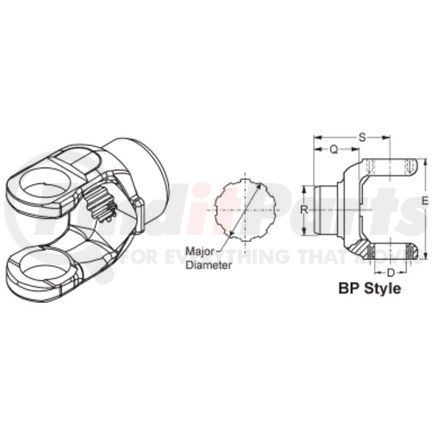

Dana 5-4-4761X - 1610 Series Differential End Yoke - Assembly, Steel, BP Yoke Style, 10 Spline
$48599
MSRP: $487.53
Save: $1.54
In stock
limited availability at this price!
. Learn more
DANA part description
Specifications
| Brand | Spicer |
| Series | 1610 |
| Spline Count | 10 |
| Yoke Style | BP |
| Hub Diameter R | 2.625 |
| C/L To End Hub S | 6.000 |
| Type | Splined Hole |
| Major Diameter | 1.750 |
| Involute Spline | N |
| Length Thru Hole Q | 2.250 |
| VMRS | 022003072 |
| C-Bore Depth | 0.250 |
| Includes Slinger/Plug | Y |
| Assembly | Y |
| Material | Steel |
| Package Type | EACH |
| Package Qty | 1 |
| Weight | 10.14 LB |
| Country of Origin | Mexico |
Product Attributes
| Series | 1610 |
| Material | Steel |
| Spline Count | 10 |
| Type | Splined Hole |
| Assembly | Y |
| Hub Diameter R | 2.625 IN |
| Includes Slinger/Plug | Y |
| Involute Spline | N |
| Length Thru Hole Q | 2.250 IN |
| Yoke Style | BP |
| Major Diameter | 1.750 IN |
| C/L To End Hub S | 6.000 IN |
| C-Bore Depth | 0.250 IN |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 8708990000 |
| Harmonized Tariff Code (HTS) | 8708990000 |
| UPC | 00023913220457 |
| VMRS Code | 022003072 |
Part Interchanges
- Meritor 16N 4 4761X
- Meritor 16N44761X
- AGCO AG607174
- Daimler Truck North America SP 5 4 4761X
- Daimler Truck North America SP 5 4 4761XHP
- Dana Commercial Vehicle Service Parts 073589
- Dana Commercial Vehicle Service Parts 073590
- Dana Commercial Vehicle Service Parts 2104-544761X
- Dana Commercial Vehicle Service Parts 38MU29309P2
- Volvo 2104-544761X
- Volvo 38MU29309P2
- Volvo SP 544761X
- International Harvester (IHC) 1662219C91
- International Harvester (IHC) 5 4 4761X
- International Harvester (IHC) 544761X
- International Harvester (IHC) D544761X
- International Harvester (IHC) E544761X
- Navistar 1662219C91
- Navistar 544761X
- Navistar D544761X
- Navistar DS544761X
- Navistar E544761X
- Navistar ETN0073589
- Navistar ETN0073590
- Paccar Parts 5-4-4761X
- Rockwell International 16N-4-4761X
- Mack 2104-544761X
- Mack 25153110
- Mack 38MU29309P2
- Freightliner SP 5 4 4761X
- Freightliner SP 5 4 4761XHP
- UAP 5-4-4761X
DANA 5-4-4761X Cross Reference
We have 5 alternatives for the 5-4-4761X by DANA:
Dana Holding Corporation® is an internationally known company specializing in drivetrain and e-Propulsion systems. It conceptualizes, manufactures, and supplies energy-management and power- and conveyance solutions for the present-day and future vehicles and trucks. With its over 115 years of industry experience and innovation, and despite several turbulences the automotive and trucking industry has been through, Dana has managed to take the lead in revolutionary technological inventions. Dana Holding Corporation comprises different world-renowned brands catering to various market segments. These include SPICER Drivetrain Systems, VICTOR REINZ Sealing Products, LONG Thermal Products, BREVINI Motion Systems, GRAZIANO High-Performance Transmissions, FAIRFIELD Custom Gears and Drives, and a lot more.
