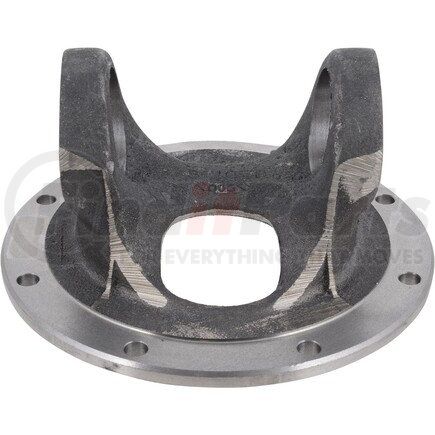

Name: Dana 5-2-629 1610 Series Drive Shaft Flange Yoke - Steel, 8 Bolt Holes, Circular Design
SKU: 52629
Price: 311.49 USD
Availability: InStock

DANA part description

A Flange or Swing Dia	8
B Bolt Circle Dia	7.25
Bolt Hole Dia NOM	.375-D
Number of Bolt Holes	8
C Pilot Dia Mmale Ffemale	7.750-M
G Flange Face to CL	2.75
Figure	2

Product Attributes

Series	1610
Material	Steel
Number of Bolt Holes	8
Design	Circular
Bolt Circle Dia. In. (B)	7.250 IN
Bolt Hole Dia. In (B)	.375 - DRILLED IN
Flange Face To C/L In. (G)	2.750 IN
Flange Or Swing Dia. In. (A)	8.000 IN
Outside Yoke Dimension In.(E)	5.312 IN
Pilot Dia. M=male F=female (c)	7.750 - MALE
Yoke Bearing Dimension In. (D)	1.875 IN
Joint Angle #1	22

Additional Information

Country of Origin (Primary)	US
Harmonized Tariff Code (Schedule B)	8708990000
Harmonized Tariff Code (HTS)	8708990000
UPC	00023913215194
VMRS Code	024002016

Part Interchanges

DANA 5-2-629 Cross Reference

We have 2 alternatives for the 5-2-629 by DANA:
