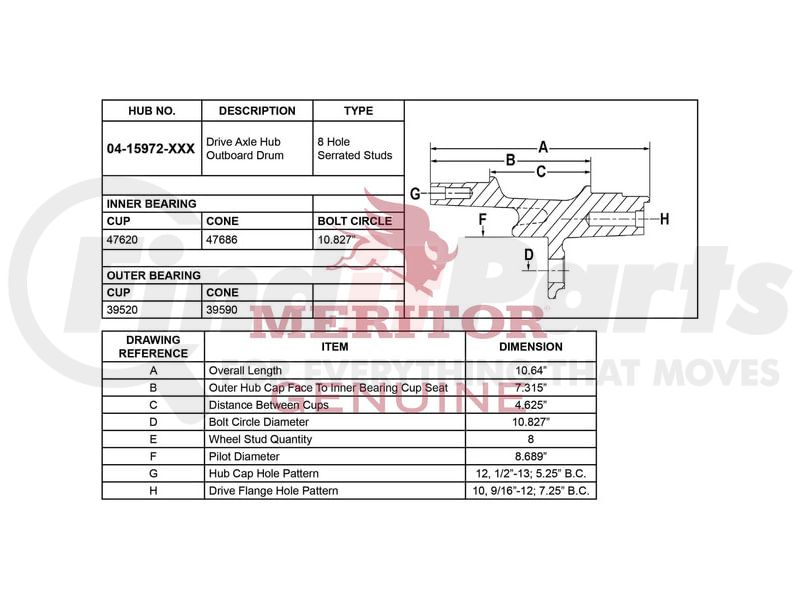

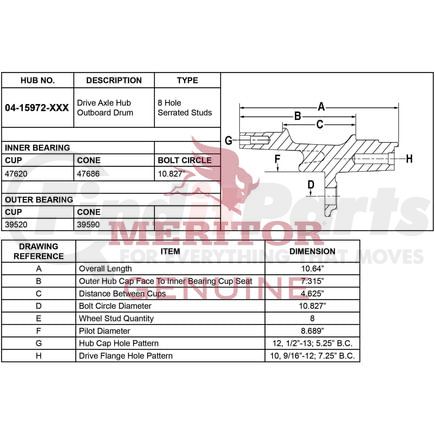

Meritor 0415972002 - Hub Assembly - Rear, Right or Left, with Races
$73749
40 day lead time
. Learn more
MERITOR part description
| Axle Application | Drive |
| Axle Series | L |
| Base Part Number | 15972 |
| Brake Type | Disc |
| Disc Bolt Circle Diameter | 7.25 in. |
| Disc Bolt Pattern | 10 |
| Disc Bolt Size | 9/16-12 UNC-2B |
| Drive Flange Stud | 08-205435 |
| Drive Stud Pattern | 12 |
| Drive Stud Thread | 1/2-13 UNC-3B |
| DriveStud Bolt Circle Dia | 5.25 in. |
| Drum Bolt Pattern | 8 |
| Drum Position | Outboard |
| Flange Outer Diameter | 12.62 in. |
| Fully Dressed | No |
| GAWR (lb) | 19000 |
| Hub Style | Conventional |
| Hub Type | Hub only |
| IBS to OBS | 4.645/4.605 in. |
| IBS to Outer Surface | 7.335/7.295 in. |
| Inner Bearing Surface (IBS) to Mounting Face | 1.84 in. |
| Inner Cone | 47686 |
| Inner Cup | 47620 |
| Notes | With Wheel Studs |
| Oil Seal | A1205W1349 |
| Outer Cone | 39590 |
| Outer Cup | 39520 |
| Tone Ring | N |
| VMRS Code | 018-002-001 |
| Wheel Pilot Diameter | 8.685/8.693 in. |
| Wheel Stud | 09-001989 |
| Wheel Stud Bolt Circle Diameter | 10.827 in. |
| Wheel Stud Hole | .904/.906 in. |
| Wheel Stud Pattern | 8 |
Meritor Hydraulic Brake Hub and Stud Assembly
The Meritor hydraulic brake hub and stud assembly is built for higher payload capacities and improved fuel economy. It is suitable for a wide range of trucks, trailers, and other commercial vehicle applications.
Features & Benefits
- Designed for weight savings and strength for increased payload and better fuel mileage
- Meets or exceeds OE specifications and federal stopping distance requirements
- Advanced machining processes ensures an optimum balanced operation
- Studs are made of heat-treated steel for increased durability long service life
- Click here for warranty information
Product Attributes
| Note | with Races |
| Position | Rear, Right or Left |
Meritor®, whose roots could be traced back to 1909, is backed by over 100 years of industry experience plus a massive portfolio of products for various industries. In 1998, it made several acquisitions, including Volvo Trucks' heavy vehicle manufacturing operation in Sweden, Euclid Industries, and Lucas Varity's Heavy Vehicle Braking Systems division. Such investments solidify Meritor's position as the leading global supplier of brakes, axles, drivelines, transmissions, suspensions, tire inflations systems, and a whole lot of parts, hardware, and accessories for the automotive, truck, trailer, rail cars, bus and coach, and many other applications. Its "Run with the Bull" global brand identity further strengthens its commitment to provide the industry with durable products, unparalleled service and support, and continuous innovation.
