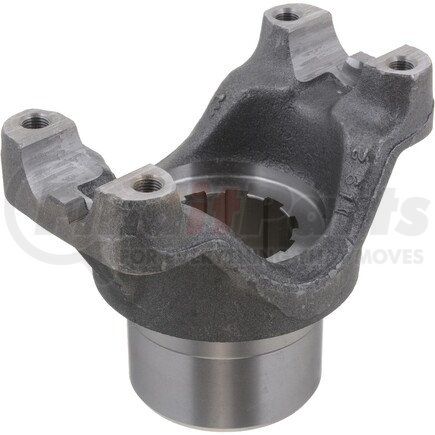

Name: Dana 4-4-2451-1 1550 Series Drive Shaft End Yoke - Steel, 10 Spline, BS Yoke Style, Splined Hole
SKU: 4424511
Price: 218.49 USD
Availability: InStock

DANA part description

Specifications

Brand	Spicer
Series	1550
Spline Count	10
Yoke Style	BS
Hub Diameter R	2.746
C/L To End Hub S	4.500
Type	Splined Hole
Outside Yoke Dimension (In) E	4.964
Yoke Bearing Dimension (In) D	1.375
Major Diameter	2.000
Involute Spline	N
Length Thru Hole Q	2.453
VMRS	024001003
Material	Steel
Joint Angle #1	22
Package Type	EACH
Package Qty	1
Weight	2.52 LB
Country of Origin	United States

Product Description

Features & Benefits

Uses high-grade Dana approved materials to ensure optimal quality.
Dana designed, tested and engineered.
Genuine OE quality. Tested and proven.

Product Attributes

Series	1550
Material	Steel
Spline Count	10
Type	Splined Hole
Hub Diameter R	2.746 IN
Involute Spline	N
Length Thru Hole Q	2.453 IN
Outside Yoke Dimension (In) E	4.964 IN
Yoke Bearing Dimension (In) D	1.375 IN
Yoke Style	BS
Major Diameter	2.000 IN
C/L To End Hub S	4.500 IN
Joint Angle #1	22

Additional Information

Country of Origin (Primary)	US
Harmonized Tariff Code (Schedule B)	8708990000
Harmonized Tariff Code (HTS)	8708990000
UPC	00023913216078
VMRS Code	024001003

Part Interchanges

DANA 4-4-2451-1 Cross Reference

We have 2 alternatives for the 4-4-2451-1 by DANA:
