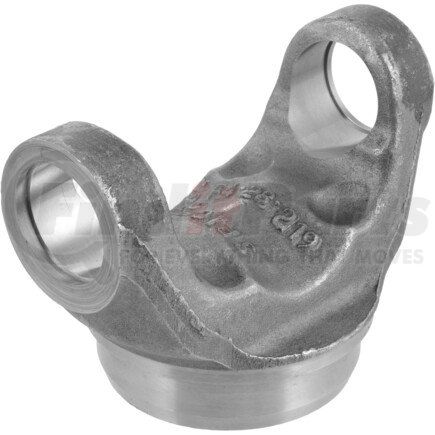

Name: Dana 4-28-487 1550 Series Drive Shaft Tube Weld Yoke - Steel, SR Design, fits 3.500 in. dia. Tube
SKU: 428487
Price: 93.99 USD
Availability: InStock

DANA part description

Spicer 4-28-487 1550 Weld Yoke
428487
PLEASE USE THE DANA ONILNE WELD YOKE CATALOG TO SELECT YOUR PART NUMBERS

4-28-487
SERIES:1550
F BUTT DIAMETER:3.250
H C/L TO WELD:2.188
FITS TUBE DIA:3.500
FITS TUBE WALL:
BALL STUD DIAMETER:
BALL STUD LENGTH:
JOINT CENTER TO STUD END:

Product Attributes

Series	1550
Material	Steel
Design	SR
Fits Tube Wall (S=Seam W=Weld)	.134-WELDED
Joint Angle #1	22.5
Butt Diameter (F) In.	3.243 IN
C/L To Weld (H) In.	2.188 IN
Bearing Cap Diameter (D) In.	1.375 IN
Outside Yoke Dimension (E) In.	5.25 IN
Fits Tube Diameter (In)	3.500 IN

Additional Information

Country of Origin (Primary)	IN
Harmonized Tariff Code (Schedule B)	8708990000
Harmonized Tariff Code (HTS)	8708990000
UPC	00023913219093
VMRS Code	024002057

Part Interchanges
