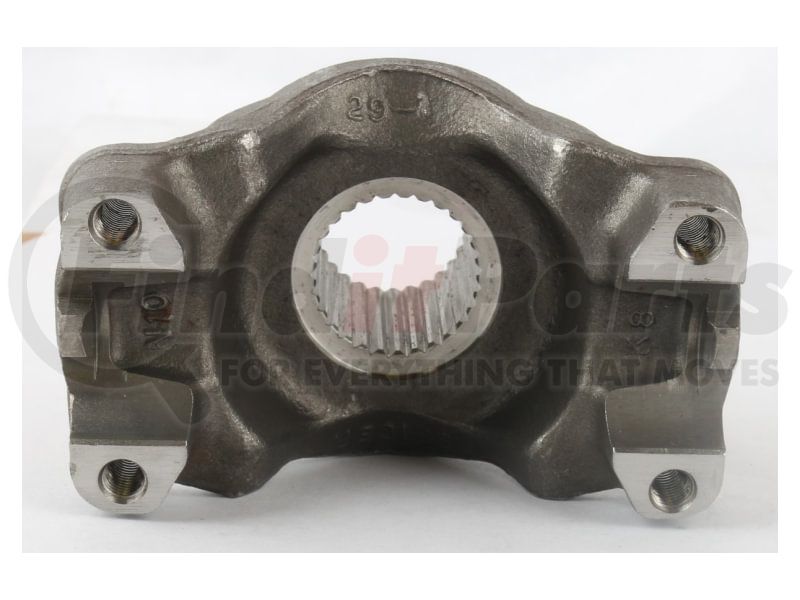

Name: Dana 3-4-8731-1 1410 Series Drive Shaft End Yoke - Steel, 29 Spline, BS Yoke Style, Splined Hole
SKU: 3487311
Price: 112.49 USD
Availability: InStock

DANA part description

Series:	1410
Spline Count:	29
Yoke Style:	BS
Hub Diameter R:	1.875 in.
C/L to End Hub S:	3.188
Type:	Splined Hole
Outside Yoke Dimension (E):	4.188 in.
Yoke Bearing Dimension (IN) D:	1.188
Major Diameter:	1.276
Involute Spline:	I
Length Thru Hole Q:	1.500
Material:	Steel
Joint Angle #1:	30

Product Description

Features & Benefits

Uses high-grade Dana approved materials to ensure optimal quality.
Dana designed, tested and engineered.
Genuine OE quality. Tested and proven.

Product Attributes

Series	1410
Material	Steel
Spline Count	29
Type	Splined Hole
Hub Diameter R	1.875 IN
Involute Spline	I
Length Thru Hole Q	1.500 IN
Outside Yoke Dimension (In) E	4.188 IN
Yoke Bearing Dimension (In) D	1.188 IN
Yoke Style	BS
Major Diameter	1.276 IN
C/L To End Hub S	3.188 IN
Joint Angle #1	30

Additional Information

Country of Origin (Primary)	US
Harmonized Tariff Code (Schedule B)	8708990000
Harmonized Tariff Code (HTS)	8708990000
UPC	00023913222307
VMRS Code	024001003

Part Interchanges

Dana Holding Corporation® is an internationally known company specializing in drivetrain and e-Propulsion systems. It conceptualizes, manufactures, and supplies energy-management and power- and conveyance solutions for the present-day and future vehicles and trucks. With its over 115 years of industry experience and innovation, and despite several turbulences the automotive and trucking industry has been through, Dana has managed to take the lead in revolutionary technological inventions. Dana Holding Corporation comprises different world-renowned brands catering to various market segments. These include SPICER Drivetrain Systems, VICTOR REINZ Sealing Products, LONG Thermal Products, BREVINI Motion Systems, GRAZIANO High-Performance Transmissions, FAIRFIELD Custom Gears and Drives, and a lot more.
