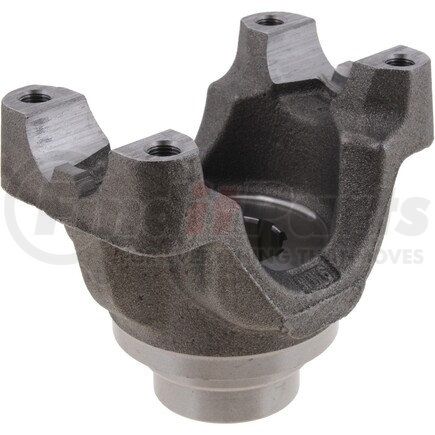

(888) 312-8812 Login SignupDANA 3-4-6901-1 HALF RND END
Tap to view 2 more
$8199
Limited availability at this price!
In Stock
Get it by Friday, Jan 9
DANA 3-4-6901-1 Part Description
Manufacturer
| Brand: | Spicer |
| Series: | 1480 |
| Spline Count: | 10 |
| Yoke Style: | BS |
| Hub Diameter R: | 1.81 |
| Centerline to End Hub S: | 4.031 |
| Type: | Splined Hole |
| Outside Yoke Dimension (IN) E: | 4.188 |
| Yoke Bearing Dimension (IN) D: | 1.375 |
| Major Diameter: | 1.5 |
| Involute Spline: | N |
| VMRS: | 22003072 |
| Length Thru Hole Q: | 2 |
| Material: | Steel |
| Joint Angle #1: | 30 |
| Package Type: | Each |
| Package Quantity: | 1 |
| Weight: | 3.7 lbs. |
| Country of Origin: | United States |
| UPC Code: | 023913213398 |
DANA 3-4-6901-1 Specifications
Product Attributes
| Series | 1480 |
| Material | Steel |
| Spline Count | 10 |
| Type | Splined Hole |
| Hub Diameter R | 1.810 IN |
| Involute Spline | N |
| Length Thru Hole Q | 2.000 IN |
| Outside Yoke Dimension (In) E | 4.188 IN |
| Yoke Bearing Dimension (In) D | 1.375 IN |
| Yoke Style | BS |
| Major Diameter | 1.500 IN |
| C/L To End Hub S | 4.031 IN |
| Joint Angle #1 | 30 |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708990000 |
| Harmonized Tariff Code (HTS) | 8708990000 |
| UPC | 00023913213398 |
| VMRS Code | 022003072 |
DANA 3-4-6901-1 Part Interchanges
| Brand | Part Number |
|---|---|
| Allison Transmission | 15619184 |
| Daimler Truck North America | SP 3 4 6901 1, SP 3 4 6901 1HP |
| General Motors | 15619184 |
| Volvo | SP 3469011 |
| International Harvester (IHC) | 1681109C1, 1681109C91, 3469011, D3469011, D3-4-6901-1, E3469011 |
| John Deere | T169301 |
| Navistar | 1681109C1, 1681109C91, 3469011, D3469011, D3-4-6901-1, DS3469011 |
| Paccar Parts | 3-4-6901-1 |
| Freightliner | SP 3 4 6901 1, SP 3 4 6901 1HP |
| UAP | 3-4-6901-1 |
DANA 3-4-6901-1 Cross References
We have 2 alternatives for the 3-4-6901-1 by DANA:
