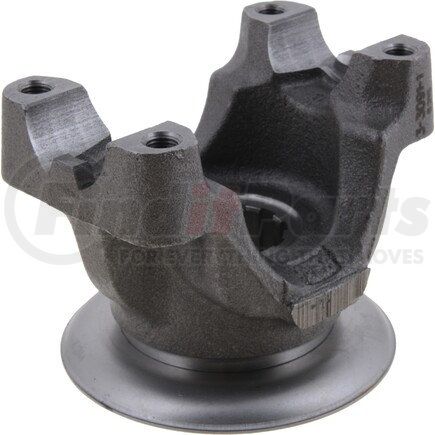

Name: Dana 3-4-4421-1X 1480 Series Differential End Yoke - Steel, BS Yoke Style, 10 Spline
SKU: 3444211x
Price: 229.99 USD
Availability: InStock

DANA part description

Specifications

Brand	Spicer
Series	1480
Spline Count	10
Yoke Style	BS
Hub Diameter R	1.938
C/L To End Hub S	4.031
Type	Splined Hole
Outside Yoke Dimension (In) E	4.188
Yoke Bearing Dimension (In) D	1.375
Major Diameter	1.500
Involute Spline	N
Length Thru Hole Q	2.000
VMRS	022003072
Material	Steel
Package Type	EACH
Package Qty	1
Weight	4.3 LB
Country of Origin	United States

Product Attributes

Series	1480
Material	Steel
Spline Count	10
Type	Splined Hole
Hub Diameter R	1.938 IN
Involute Spline	N
Length Thru Hole Q	2.000 IN
Outside Yoke Dimension (In) E	4.188 IN
Yoke Bearing Dimension (In) D	1.375 IN
Yoke Style	BS
Major Diameter	1.500 IN
C/L To End Hub S	4.031 IN

Additional Information

Country of Origin (Primary)	US
Harmonized Tariff Code (Schedule B)	8708990000
Harmonized Tariff Code (HTS)	8708990000
UPC	00023913215927
VMRS Code	022003072

Part Interchanges

DANA 3-4-4421-1X Cross Reference

We have 3 alternatives for the 3-4-4421-1X by DANA:
