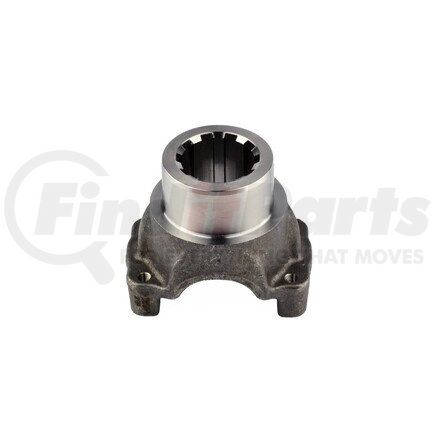

Name: Dana 3-4-3801-1 1350 Series Drive Shaft End Yoke - Steel, 10 Spline, BS Yoke Style, Splined Hole
SKU: 3438011
Price: 269.99 USD
Availability: InStock

DANA part description

Series:	1350
Spline Count:	10
Yoke Style:	BS
Hub Diameter R:	2.375 in.
C/L to End Hub S:	3.500
Type:	Splined Hole
Outside Yoke Dimension (E):	3.625 in.
Yoke Bearing Dimension (IN) D:	1.188
Major Diameter:	1.750
Involute Spline:	N
Length Thru Hole Q:	1.812
Material:	Steel

Product Description

Features & Benefits

Uses high-grade Dana approved materials to ensure optimal quality.
Dana designed, tested and engineered.
Genuine OE quality. Tested and proven.

Product Attributes

Series	1350
Material	Steel
Spline Count	10
Type	Splined Hole
Hub Diameter R	2.375 IN
Involute Spline	N
Length Thru Hole Q	1.812 IN
Outside Yoke Dimension (In) E	3.625 IN
Yoke Bearing Dimension (In) D	1.188 IN
Yoke Style	BS
Major Diameter	1.750 IN
C/L To End Hub S	3.500 IN

Additional Information

Country of Origin (Primary)	US
Harmonized Tariff Code (Schedule B)	8708990000
Harmonized Tariff Code (HTS)	8708990000
UPC	00023913235758
VMRS Code	024001003
