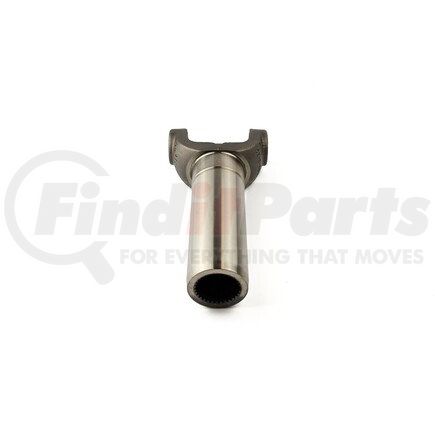

Name: Dana 3-3-4391X 1410 Series Drive Shaft Transmission Slip Yoke - Steel, 30/31 Spline, SR Style
SKU: 334391x
Price: 171.99 USD
Availability: InStock

DANA part description

Series:	1410
Outside Yoke Dimension (E):	4.438 in.
Bearing Cap Diameter (D):	1.188 in.
To End of Spline (J):	8.340 in.
Hub Diameter (R):	2.200 in.
Spline Outside Diameter (STD):	1.615 in.
No. of Splines:	30/31 I
Involute:	I
Style:	SR
Material:	Steel
Number of Splines Based On:	31
C-Line to Washer Face:	1.344
Type of Hub:	Ground Hub

Product Attributes

Series	1410
Material	Steel
Style	SR
No. Of Splines	30/31 I
Bearing Cap Diameter (D) In.	1.188 IN
Outside Yoke Dimension (E) In.	4.438 IN
Spline O.D. (STD)	1.615 IN
To End Of Spline (J) In.	8.340 IN
Type of Hub	Ground Hub
C-Line to Washer Face	1.344 IN
Involute	I
Number of Splines Based On	31
Hub Diameter (R) In.	2.200 IN

Additional Information

Country of Origin (Primary)	US
Harmonized Tariff Code (Schedule B)	8708990000
Harmonized Tariff Code (HTS)	8708990000
UPC	00023913229856
VMRS Code	024002038

Part Interchanges
