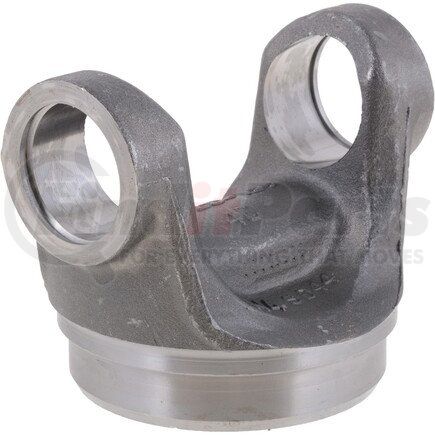

DANA 3-28-567 Part Description
Manufacturer
Spicer 3-28-567 Weld Yoke 1480 3.5 X .095
328567
PLEASE USE THE DANA ONILNE WELD YOKE CATALOG TO SELECT YOUR PART NUMBERS
3-28-567
SERIES:1480
F BUTT DIAMETER:3.321
H C/L TO WELD:2.031
FITS TUBE DIA:3.500
FITS TUBE WALL:
BALL STUD DIAMETER:
BALL STUD LENGTH:
JOINT CENTER TO STUD END:
328567
PLEASE USE THE DANA ONILNE WELD YOKE CATALOG TO SELECT YOUR PART NUMBERS
3-28-567
SERIES:1480
F BUTT DIAMETER:3.321
H C/L TO WELD:2.031
FITS TUBE DIA:3.500
FITS TUBE WALL:
BALL STUD DIAMETER:
BALL STUD LENGTH:
JOINT CENTER TO STUD END:
DANA 3-28-567 Specifications
Product Attributes
| Series | 1480 |
| Material | Steel |
| Design | SR |
| Fits Tube Wall (S=Seam W=Weld) | .095-WELDED |
| Joint Angle #1 | 22 |
| Butt Diameter (F) In. | 3.321 IN |
| C/L To Weld (H) In. | 2.031 IN |
| Bearing Cap Diameter (D) In. | 1.375 IN |
| Outside Yoke Dimension (E) In. | 4.438 IN |
| Fits Tube Diameter (In) | 3.500 IN |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708990000 |
| Harmonized Tariff Code (HTS) | 8708990000 |
| UPC | 00023913217693 |
| VMRS Code | 024002057 |
DANA 3-28-567 Cross References
| Brand | Part Number |
|---|---|
| SP328567 | |
| Daimler Truck North America | SP 3 28 567, SP 3 28 567HP |
| Freightliner | SP 3 28 567, SP 3 28 567HP |
| International Harvester (IHC) | 328567, D328567, E328567 |
| MERITOR | 148N-28-567 |
| Meritor | 148N28567 |
| Navistar | 328567, D328567, DS328567, E328567 |
| Neapco OE Series | N3-28-567 |
| Paccar Parts | 3-28-567 |
| Rockwell International | 148N-28-567 |
| UAP | 3-28-567 |
| Volvo | SP 328567 |
