(888) 312-8812 Login SignupRAYBESTOS 980863R Raybestos R-Line Brake Rotor
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 980863R Part Description
Manufacturer
Product Description

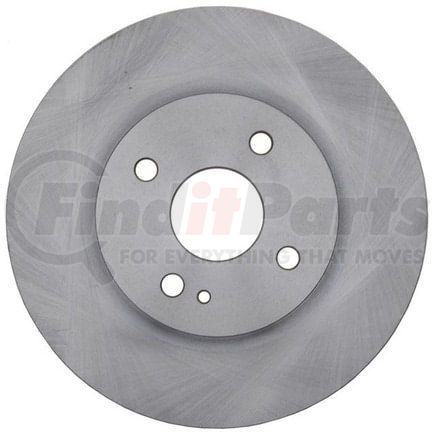

Raybestos R-Line Brake Rotor
Application Summary
2014-2011 Mazda 2 Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 980863R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.165 IN |
| Center Hole Diameter | 55 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.827 IN |
| Discard Thickness | 21 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 6.516 IN |
| Inside Diameter | 165.5 MM |
| Mounting Bolt Hole Circle Diameter | 3.937 IN |
| Mounting Bolt Hole Circle Diameter | 100 MM |
| Mounting Bolt Hole Diameter | 3.937 IN |
| Mounting Bolt Hole Diameter | 100 MM |
| Mounting Bolt Hole Quantity | 4 |
| Nominal Thickness | 0.906 IN |
| Nominal Thickness | 23 MM |
| Outside Diameter | 10.154 IN |
| Outside Diameter | 257.9 MM |
| Overall Height | 1.728 IN |
| Overall Height | 43.9 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 4 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352846742 |
RAYBESTOS 980863R Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | YH317652, YH317652C, YH317652P |
| ATE BRAKE PRODUCTS | 423112 |
| AUTOPARTSOURCE | 474870 |
| AUTOXTRA | AX900998 |
| AUTOZONE | 44719, 44719DG, 44719DL |
| BENDIX | PRT6104 |
| BRAKEBEST | 980863FZN, 980863R, 980863RGS |
| Brembo | 09.A968.11 |
| CENTRIC | 120.45082, 121.45082, 126.45082SL, 126.45082SR, 127.45082L, 127.45082R, 320.45082 |
| Centric Parts | 120.45082, 121.45082, 126.45082SL, 126.45082SR, 127.45082L, 127.45082R, 320.45082 |
| DURA CORP | BR900998 |
| DuraGo | 900998, BR900998 |
| MAGMA PRODUCTS | PMR363046 |
| MAZDA | DF7133251 |
| NAPA BRAKES | SDK6133, TSR7127 |
| NEWTEK AUTOMOTIVE | 31568 |
| Newtek Automotive USA | 31568 |
| POWERSTOP | JBR1561EVC |
| QUALIS | 44719 |
| TRW | 4966, DF4966, DF7127S |
| TopNotch | TN980863GEO |
| UAP | 2031568, 31568 |
| Ultra Brake | MA-8021 |
| WAGNER BRAKE | BD180415, SB980863 |
| WORLDPAC | 1407-317652, 1427-732009 |
| Wagner Brake | BD180415E |
| Winhere | 6620779 |
RAYBESTOS 980863R Fits Vehicles
- Mazda 2 (2011-2015)
RAYBESTOS 980863R Customer Reviews
No reviews yet
Be the first to review this product!
RAYBESTOS 980863R Questions & Answers
No questions yet
Be the first to ask a question about this product!
