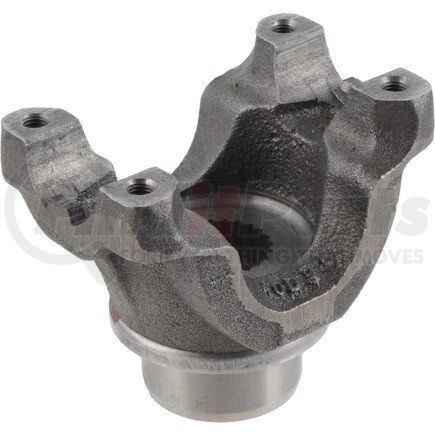

DANA part description

Series: 1310
Spline Count: 23
Yoke Style: BS
Hub Diameter R: 1.552 in.
C/L to End Hub S: 3.000
Type: Splined Hole
Outside Yoke Dimension (E): 3.219 in.
Yoke Bearing Dimension (IN) D: 1.062
Major Diameter: 1.026
Involute Spline: Y
Length Thru Hole Q: 1.500
Material: Steel

Dana Holding Corporation® is an internationally known company specializing in drivetrain and e-Propulsion systems. It conceptualizes, manufactures, and supplies energy-management and power- and conveyance solutions for the present-day and future vehicles and trucks. With its over 115 years of industry experience and innovation, and despite several turbulences the automotive and trucking industry has been through, Dana has managed to take the lead in revolutionary technological inventions. Dana Holding Corporation comprises different world-renowned brands catering to various market segments. These include SPICER Drivetrain Systems, VICTOR REINZ Sealing Products, LONG Thermal Products, BREVINI Motion Systems, GRAZIANO High-Performance Transmissions, FAIRFIELD Custom Gears and Drives, and a lot more.
