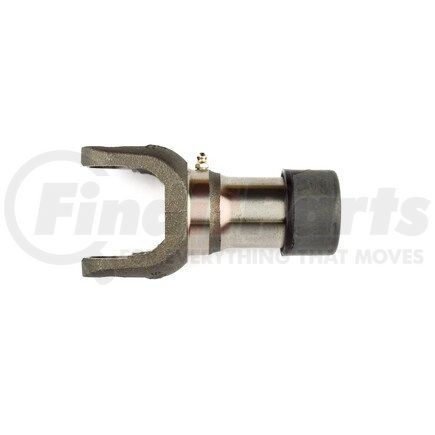

Dana 2-3-8481X - Drive Axle Shaft Slip Yoke - Steel, 30/31 Spline, 1.39 in. OD Spline, SR Style
$64699
In stock
limited availability at this price!
DANA part description
Series: | 1310 |
Material: | Steel |
Outside Yoke Dimension (E): | 3.469 in. |
Bearing Cap Diameter (D): | 1.062 in. |
C/L to End of Spline (J): | 5.062 in. |
C/L to Face of Plug (F): | 1.438 in. |
Spline Outside Diameter: | 1.390 in. |
No. of Splines: | 3031 |
Involute: | Y |
Style: | SR |
Joint Angle #1: | 0 |
Features & Benefits
- Genuine OE quality. Tested and proven.
- Built to meet OE standards set by Dana.
- Tested and validated to rigorous OE specifications.
- Latest production upgrades ensure genuine Spicer parts are as good or better than the OE parts they replace.
Product Attributes
Series | 1310 |
Material | Steel |
Style | SR |
Joint Angle #1 | 0.0 |
C/L To End Of Spline (J) In. | 5.062 IN |
C/L To Face Of Plug (F) In. | 1.438 IN |
No. Of Splines | 30/31 |
Bearing Cap Diameter (D) In. | 1.062 IN |
Outside Yoke Dimension (E) In. | 3.469 IN |
Involute | Y |
Spline O.D. | 1.390 IN |
Additional Information
Country of Origin (Primary) | US |
Harmonized Tariff Code (Schedule B) | 8708990000 |
Harmonized Tariff Code (HTS) | 8708990000 |
UPC | 00023913234454 |
VMRS Code | 024002038 |
Part Interchanges
- Daimler Truck North America SP 2 3 8481X
- Daimler Truck North America SP 2 3 8481XHP
- Dana Commercial Vehicle Service Parts 2104-238481X
- Dana Commercial Vehicle Service Parts 2-3-8481KX
- Ford E1TZ-3L387-A
- Volvo 2104-238481X
- Volvo SP 238481X
- International Harvester (IHC) 238481X
- International Harvester (IHC) D238481X
- International Harvester (IHC) E238481X
- Navistar 238481X
- Navistar D238481X
- Navistar DS238481X
- Navistar E238481X
- Mack 2104-238481X
- Freightliner SP 2 3 8481X
- Freightliner SP 2 3 8481XHP
- UAP 2-3-8481X
Dana Holding Corporation® is an internationally known company specializing in drivetrain and e-Propulsion systems. It conceptualizes, manufactures, and supplies energy-management and power- and conveyance solutions for the present-day and future vehicles and trucks. With its over 115 years of industry experience and innovation, and despite several turbulences the automotive and trucking industry has been through, Dana has managed to take the lead in revolutionary technological inventions. Dana Holding Corporation comprises different world-renowned brands catering to various market segments. These include SPICER Drivetrain Systems, VICTOR REINZ Sealing Products, LONG Thermal Products, BREVINI Motion Systems, GRAZIANO High-Performance Transmissions, FAIRFIELD Custom Gears and Drives, and a lot more.
