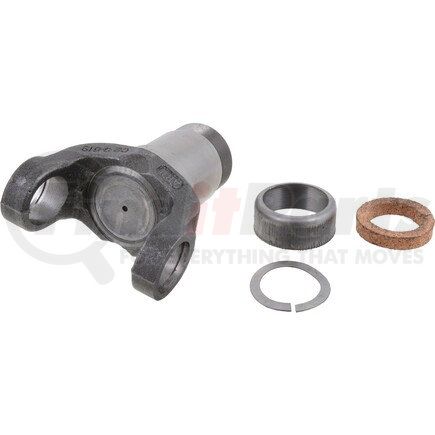

Name: Dana 2-3-348KX 1310 Series Drive Shaft Slip Yoke - Steel, 16 Spline, 1.375 in. OD Spline, SR Style
SKU: 23348kx
Price: 494.99 USD
Availability: InStock

DANA part description

Series:	1310
Material:	Steel
Outside Yoke Dimension (E):	3.469 in.
Bearing Cap Diameter (D):	1.062 in.
C/L to End of Spline (J):	4.188 in.
C/L to Face of Plug (F):	1.000 in.
Spline Outside Diameter:	1.375 in.
No. of Splines:	16
Involute:	N
Style:	SR
Joint Angle #1:	15

Product Description

Features & Benefits

Uses high-grade Dana approved materials to ensure optimal quality.
Dana designed, tested and engineered.
Genuine Spicer Product
Meets or exceeds OE standards.

Product Attributes

Series	1310
Material	Steel
Style	SR
Joint Angle #1	15
C/L To End Of Spline (J) In.	4.188 IN
C/L To Face Of Plug (F) In.	1.000 IN
No. Of Splines	16
Bearing Cap Diameter (D) In.	1.062 IN
Outside Yoke Dimension (E) In.	3.469 IN
Involute	N
Spline O.D.	1.375 IN

Additional Information

Country of Origin (Primary)	US
Harmonized Tariff Code (Schedule B)	8708990000
Harmonized Tariff Code (HTS)	8708990000
UPC	00023913232719
VMRS Code	024002038

Part Interchanges

DANA 2-3-348KX Cross Reference

We have 2 alternatives for the 2-3-348KX by DANA:
