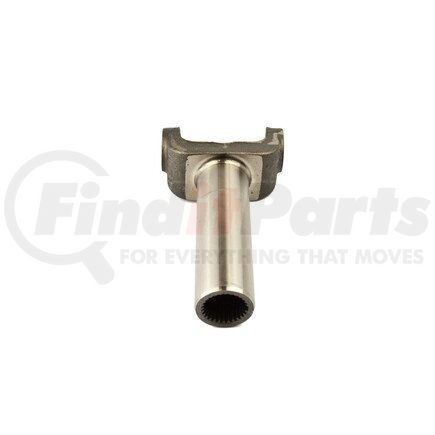

Name: Dana 2-3-14061X 1330 Series Drive Shaft Transmission Slip Yoke - Steel, 27/28 Spline, SR Style
SKU: 2314061x
Price: 120.49 USD
Availability: InStock

DANA part description

Series:	1330
Outside Yoke Dimension (E):	3.875 in.
Bearing Cap Diameter (D):	1.062 in.
To End of Spline (J):	6.630 in.
Hub Diameter (R):	1.597 in.
Spline Outside Diameter (STD):	1.220 in.
No. of Splines:	27/28 I
Involute:	Y
Style:	SR
Material:	Steel

Product Attributes

Series	1330
Material	Steel
Style	SR
No. Of Splines	27/28 I
Bearing Cap Diameter (D) In.	1.062 IN
Outside Yoke Dimension (E) In.	3.875 IN
Spline O.D. (STD)	1.220 IN
To End Of Spline (J) In.	6.630 IN
Involute	Y
Hub Diameter (R) In.	1.597 IN

Additional Information

Country of Origin (Primary)	MX
Harmonized Tariff Code (Schedule B)	8708990000
Harmonized Tariff Code (HTS)	8708990000
UPC	00023913235598
VMRS Code	024002038

Part Interchanges
