Dana 2-27-7-4724 - 1310 Series Drive Shaft Yoke and Tube - Steel, 47.75 in. Tube Length, 2.00 in. OD Tube
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.

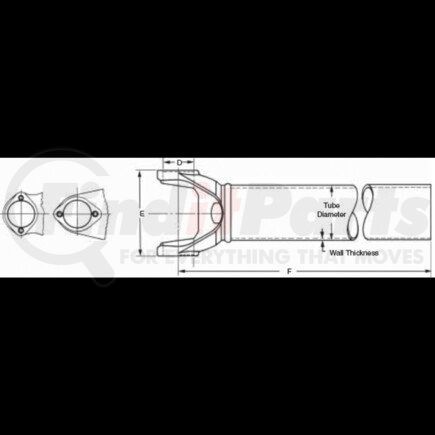

DANA part description
| Series: | 1310 |
| Material: | Steel |
| Tube Outside Diameter: | 2 in. |
| Tube Wall: | 0.083 in. |
| Tube Length: | 47.75 in. |
| TY Bearing Diameter (D): | 1.062 in. |
| TY Bearing Width (E): | 3.469 in. |
| CL of Yoke to End of Tube (F): | 49.438 in. |
| Wall Type (S/W): | W |
Features & Benefits
- Dana manufactured Spicer components are designed, engineered, tested, and manufactured to meet or exceed OE requirements.
- Spicer components are engineered to meet or exceeds the performance requirements of the original factory driveline component
- Tested for unparalleled reliability
- Strength and durability for long life
Product Attributes
| Series | 1310 |
| Material | Steel |
| (D) Ty Bearing Diameter In | 1.062 IN |
| (D) Ty Bearing Diameter Mm | 26.9748 MM |
| (E) Ty Bearing Width In | 3.469 IN |
| (E) Ty Bearing Width Mm | 88.1126 MM |
| (F) Cl Of Yk To End Of Tube In | 49.438 IN |
| (F) Cl Of Yk To End Of Tube Mm | 1255.7252 MM |
| Tube Length In | 47.750 IN |
| Tube Length Mm | 1212.85 MM |
| Tube Od In | 2.000 IN |
| Tube Od Mm | 50.8 MM |
| Tube Wall In | 0.083 IN |
| Tube Wall Mm | 2.1082 MM |
| Wall Type (S/W) | W |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708990000 |
| Harmonized Tariff Code (HTS) | 8708990000 |
| UPC | 00023913234003 |
| VMRS Code | 024001006 |
Part Interchanges
- Neapco OE Series N2-27-7-4724
- Daimler Truck North America SP 2 27 7 4724
- Daimler Truck North America SP 2 27 7 4724HP
- Dana Commercial Vehicle Service Parts 2104-22774724
- Volvo 2104-22774724
- Volvo SP 22774724
- International Harvester (IHC) 22774724
- International Harvester (IHC) D22774724
- International Harvester (IHC) D2-27-7-4724
- International Harvester (IHC) E22774724
- Navistar 22774724
- Navistar D22774724
- Navistar D2-27-7-4724
- Navistar DS22774724
- Navistar E22774724
- Paccar Parts 2-27-7-4724
- Mack 2104-22774724
- Freightliner SP 2 27 7 4724
- Freightliner SP 2 27 7 4724HP
- UAP 2-27-7-4724
