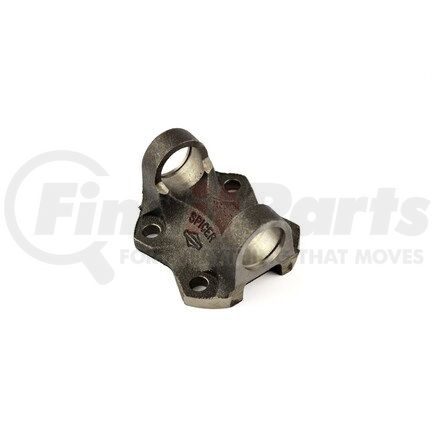

Name: Dana 2-2-349 1310 Series Drive Shaft Flange Yoke - Steel, 4 Bolt Holes, Rectangular Design
SKU: 22349
Price: 88.99 USD
Availability: InStock

DANA part description

Spicer 2-2-349 Flange
22349

PLEASE USE THE DANA ONILNE FLANGE YOKE CATALOG TO SELECT YOUR PART NUMBERS

2-2-349
JOINT SERIES:1310
BOLT CIRCLE:2.875
BOLT DIAMETER:.380-D
BOLT HOLE QUANTITY:4
FLANGE FACE TO JOINT CENTERLINE:1.375
FIGURE:1
FLANGE PILOT:—
NOTES:

Product Attributes

Series	1310
Material	Steel
Number of Bolt Holes	4
Design	Rectangular
Bolt Circle Dia. In. (B)	2.875 IN
Bolt Hole Dia. In (B)	.380 - DRILLED IN
Flange Face To C/L In. (G)	1.375 IN
Flange Or Swing Dia. In. (A)	3.625 IN
Outside Yoke Dimension In.(E)	3.469 IN
Pilot Dia. M=male F=female (c)	3.625
Yoke Bearing Dimension In. (D)	1.062 IN

Additional Information

Country of Origin (Primary)	MX
Harmonized Tariff Code (Schedule B)	8708990000
Harmonized Tariff Code (HTS)	8708990000
UPC	00023913232382
VMRS Code	024002016

Part Interchanges

DANA 2-2-349 Cross Reference

We have 1 alternatives for the 2-2-349 by DANA:

MERITOR 131N-2-349
