Name: Dana 170-4-501-1X SPL170 Series Drive Shaft End Yoke - Assembly, Steel, 10 Spline, HR Yoke Style, Splined Hole
SKU: 17045011x
Price: 125.99 USD
Availability: InStock

DANA part description

Spicer 170-4-501-1X Spl End Yoke
17045011X
PLEASE USE THE DANA ONILNE END YOKE CATALOG TO SELECT YOUR PART NUMBERS

170-4-501-1X
JOINT SERIES:SPL170

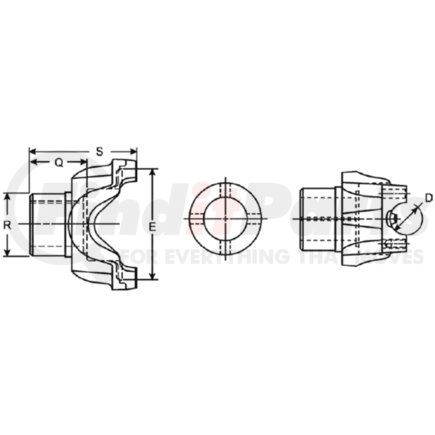

D DIMENSION:1.938
E DIMENSION:5.457
YOKE STYLE:Half Round
Q LENGTH THRU HOLE:3
R HUB DIAMETER:3.75
S CENTERLINE TO END:5.85
SPLINE COUNT:10
SPLINE OD:2.75
NOTES:

Features & Benefits

Uses high-grade Dana approved materials to ensure optimal quality.
Dana designed, tested and engineered.
Genuine OE quality. Tested and proven.

Product Attributes

Series	SPL170
Material	Steel
Spline Count	10
Type	Splined Hole
Assembly	Y
Hub Diameter R	3.750 IN
Includes Slinger/Plug	Y
Involute Spline	N
Length Thru Hole Q	3.000 IN
Outside Yoke Dimension (In) E	6.456 IN
Yoke Bearing Dimension (In) D	2.166 IN
Yoke Style	HR
Major Diameter	2.750 IN
C/L To End Hub S	5.850 IN

Additional Information

Country of Origin (Primary)	MX
Harmonized Tariff Code (Schedule B)	8708990000
Harmonized Tariff Code (HTS)	8708990000
UPC	00023913246204
VMRS Code	028004024
