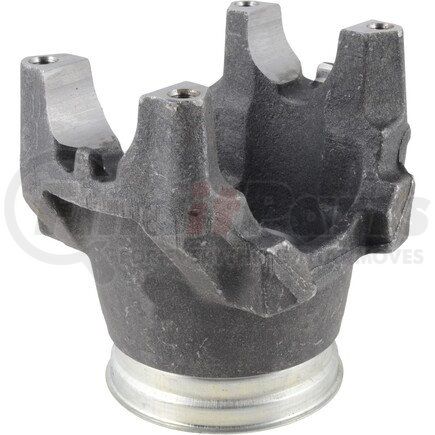

Name: Dana 170-4-381-1X SPL170 Series Differential End Yoke - Assembly, Steel, HR Yoke Style, 41 Spline
SKU: 17043811x
Price: 254.99 USD
Availability: InStock

DANA part description

Spline OD	2.143
No of Splines	41 I
R Hub Dia	2.938
Q Len Thru Hole	2.5
S CL to End	6.68
CBore Depth	0
Style	HR
Slinger Part No	232604
FN	*

Product Attributes

Series	SPL170
Material	Steel
Spline Count	41
Type	Splined Hole
Assembly	Y
Hub Diameter R	2.938 IN
Includes Slinger/Plug	Y
Involute Spline	Y
Length Thru Hole Q	2.500 IN
Outside Yoke Dimension (In) E	6.456 IN
Yoke Bearing Dimension (In) D	2.166 IN
Yoke Style	HR
Major Diameter	2.143 IN
C/L To End Hub S	6.680 IN

Additional Information

Country of Origin (Primary)	MX
Harmonized Tariff Code (Schedule B)	8708990000
Harmonized Tariff Code (HTS)	8708990000
UPC	00023913248680
VMRS Code	022003072

Part Interchanges

DANA 170-4-381-1X Cross Reference

We have 2 alternatives for the 170-4-381-1X by DANA:
