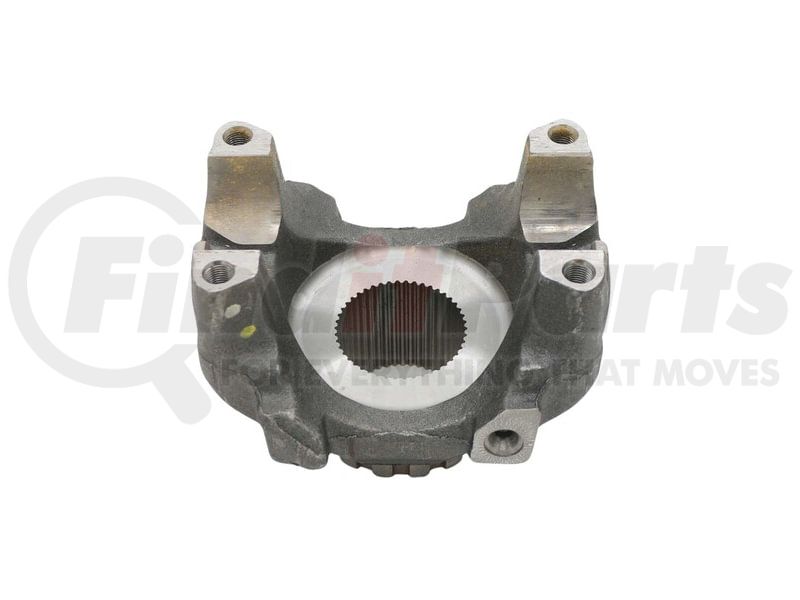

Name: Dana 170-4-1191-1X SPL170 Series Drive Shaft End Yoke - Assembly, Steel, 46 Spline, HR Yoke Style, Splined Hole
SKU: 170411911x
Price: 282.99 USD
Availability: InStock

DANA part description

Spicer 170-4-1191-1X End Yoke Assembly
170411911X
PLEASE USE THE DANA ONILNE END YOKE CATALOG TO SELECT YOUR PART NUMBERS

170-4-1191-1X
JOINT SERIES:SPL170
D DIMENSION:1.938
E DIMENSION:5.457
YOKE STYLE:Half Round
Q LENGTH THRU HOLE:2.406
R HUB DIAMETER:3.75
S CENTERLINE TO END:5.19
SPLINE COUNT:46
SPLINE OD:2.374
NOTES:INCLUDES ELECTRONIC SPEEDO GEAR 231528

Product Description

Features & Benefits

Uses high-grade Dana approved materials to ensure optimal quality.
Dana designed, tested and engineered.
Genuine OE quality. Tested and proven.

Product Attributes

Series	SPL170
Material	Steel
Spline Count	46
Type	Splined Hole
Assembly	Y
Hub Diameter R	3.750 IN
Includes Slinger/Plug	Y
Involute Spline	N
Length Thru Hole Q	2.406 IN
Outside Yoke Dimension (In) E	6.456 IN
Yoke Bearing Dimension (In) D	2.166 IN
Yoke Style	HR
Major Diameter	2.374 IN
C/L To End Hub S	5.190 IN

Additional Information

Country of Origin (Primary)	MX
Harmonized Tariff Code (Schedule B)	8708990000
Harmonized Tariff Code (HTS)	8708990000
UPC	00023913247966
VMRS Code	026001083

Part Interchanges

Dana Holding Corporation® is an internationally known company specializing in drivetrain and e-Propulsion systems. It conceptualizes, manufactures, and supplies energy-management and power- and conveyance solutions for the present-day and future vehicles and trucks. With its over 115 years of industry experience and innovation, and despite several turbulences the automotive and trucking industry has been through, Dana has managed to take the lead in revolutionary technological inventions. Dana Holding Corporation comprises different world-renowned brands catering to various market segments. These include SPICER Drivetrain Systems, VICTOR REINZ Sealing Products, LONG Thermal Products, BREVINI Motion Systems, GRAZIANO High-Performance Transmissions, FAIRFIELD Custom Gears and Drives, and a lot more.
