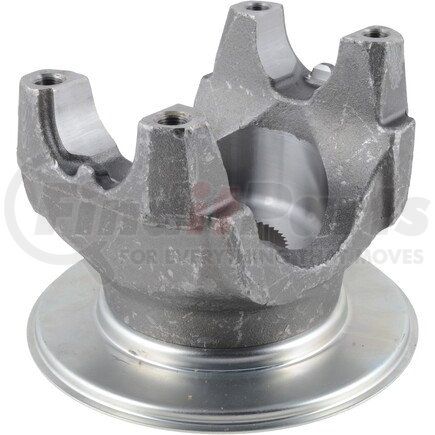

Name: Dana 131437K 1710 Series Differential End Yoke - Assembly, Steel, HR Yoke Style, 49 Spline
SKU: 131437k
Price: 390.49 USD
Availability: InStock

DANA part description

Specifications

Brand	Spicer
Series	1710
Spline Count	49
Yoke Style	HR
Hub Diameter R	3.819
C/L To End Hub S	5.570
Type	Splined Hole
Outside Yoke Dimension (In) E	6.190
Yoke Bearing Dimension (In) D	1.938
Major Diameter	2.544
Involute Spline	Y
Length Thru Hole Q	2.125
VMRS	022003072
C-Bore Depth	0.120
Includes Slinger/Plug	Y
Assembly	Y
Material	Steel
Package Type	EACH
Package Qty	1
Weight	17.31 LB
Country of Origin	Mexico

Product Attributes

Series	1710
Material	Steel
Spline Count	49
Type	Splined Hole
Assembly	Y
Hub Diameter R	3.819 IN
Includes Slinger/Plug	Y
Involute Spline	Y
Length Thru Hole Q	2.125 IN
Outside Yoke Dimension (In) E	6.190 IN
Yoke Bearing Dimension (In) D	1.938 IN
Yoke Style	HR
Major Diameter	2.544 IN
C/L To End Hub S	5.570 IN
C-Bore Depth	0.120 IN

Additional Information

Country of Origin (Primary)	MX
Harmonized Tariff Code (Schedule B)	8708990000
Harmonized Tariff Code (HTS)	8708990000
UPC	00023913216351
VMRS Code	022003072

Part Interchanges

DANA 131437K Cross Reference

We have 2 alternatives for the 131437K by DANA:

Dana Holding Corporation® is an internationally known company specializing in drivetrain and e-Propulsion systems. It conceptualizes, manufactures, and supplies energy-management and power- and conveyance solutions for the present-day and future vehicles and trucks. With its over 115 years of industry experience and innovation, and despite several turbulences the automotive and trucking industry has been through, Dana has managed to take the lead in revolutionary technological inventions. Dana Holding Corporation comprises different world-renowned brands catering to various market segments. These include SPICER Drivetrain Systems, VICTOR REINZ Sealing Products, LONG Thermal Products, BREVINI Motion Systems, GRAZIANO High-Performance Transmissions, FAIRFIELD Custom Gears and Drives, and a lot more.
